CUBE Post Supported Railing System
Engineered transparency for modern architecture. A certified, pre-engineered solution designed for structural integrity and versatile design adaptability.
EXECUTIVE SUMMARY
The CUBE Railing System by VIVA Railings features bold, contemporary lines with its 2”x2” square stainless steel posts and monolithic pyramid top caps. Designed for flexibility and performance, the system accommodates a wide range of infill types including laminated glass, perforated metal, wire mesh, cable, cablenet, multiline, and custom laser-cut panels.
Code Compliant
Meets stringent safety standards including IBC, CBC, and FBC HVHZ for windborne debris resistance.
Modular Design
Pre-engineered components and CNC fabrication reduce on-site adjustments and ensure installation efficiency.
Design Freedom
Extensive finish options, glass types, and mounting conditions to match any architectural vision.
TECHNICAL DETAILS
Engineered for performance and durability.
Overview
The hallmark of the CUBE™ system is its 2”x2” stainless steel square posts, spaced up to 5’-0” O.C. for glass and 4’-0” for cable or multiline infills.
Glass & Metal Infill
Laminated Glass Minimum 3/8” with PVB or SGP interlayers, available up to 3/4”. Perforated metal, wire mesh, cable (Ø3/16”), cablenet, multiline, and laser-cut aluminum panels
Top Rail Options
Stainless steel tube, U-cap, or wood (maple, cherry, oak), with optional integrated iRAIL™ LED lighting.
Finish Options
Standard anodized and satin finishes, plus premium CeraShield™ Ceramic Coating for extreme environments.
Load Performance
Engineered to withstand uniform loads of 50 lbf/ft and concentrated loads of 200 lbf.
Certifications
ICC-ES ESR-4405, ETL Certified (illuminated options), and compliant with ASTM C1172 & C1048.
VIVA DIFFERENTIATORS
A partnership built on precision and expertise.
Pre-Engineered & Certified
Saves time in approvals and inspections with a fully certified system.
Design Assist Services
Early collaboration with architects and GCs to ensure code-compliant, cost-effective solutions.
CeraShield™ Finishing
Enhanced durability that outperforms standard powder coating in UV and corrosion tests.
Case Studies
Trusted by leading architects and contractors on landmark projects.

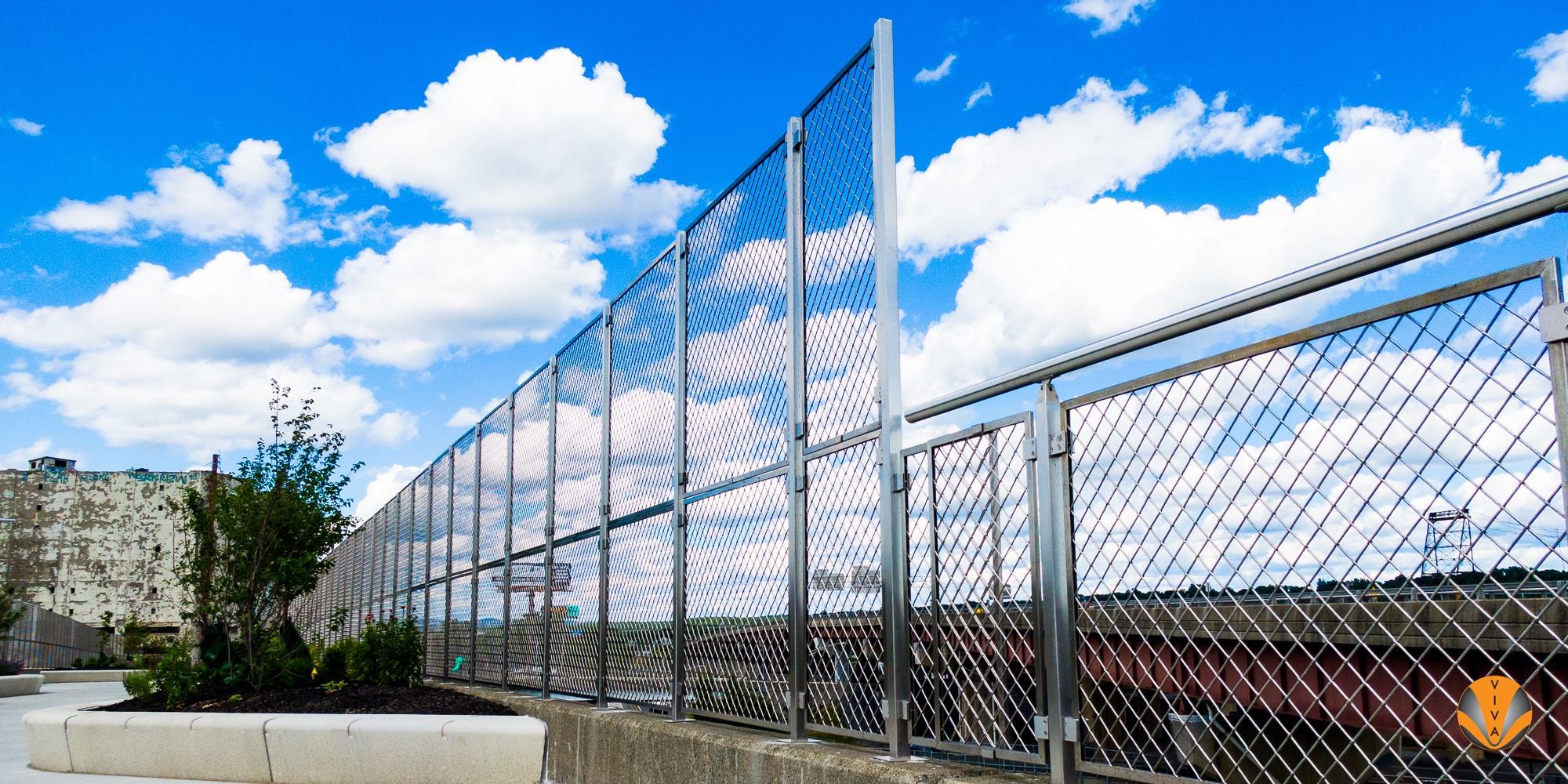

Category:
Ped Bridges
Location: Albany,
NY
Category:
Hospitality
Location: Durant,
OK
Category:
Ped Bridges
Location: Oklahoma City,
OK
Category:
Headquarters
Location: Frisco,
TX
START YOUR PROJECT
Empower your design with engineered performance and elegance.
VIVA Railings’ CUBE Railing System is a bold, modern solution that blends durability, flexibility, and strong design presence. Its square-post geometry, multiple infill choices, and integrated illumination make it a premier choice for projects seeking a robust yet elegant railing system.
