SHOE Glass Railing System

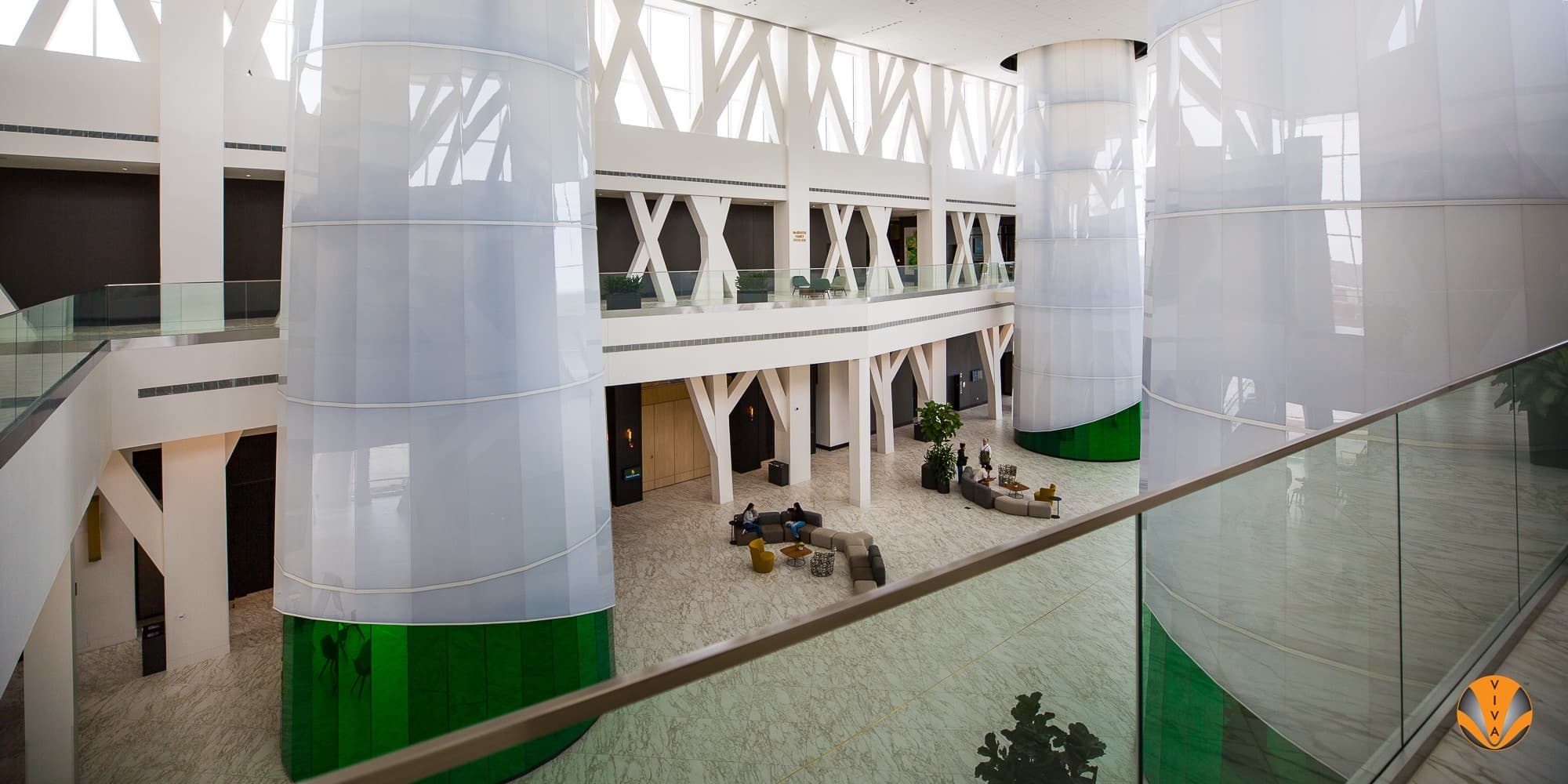

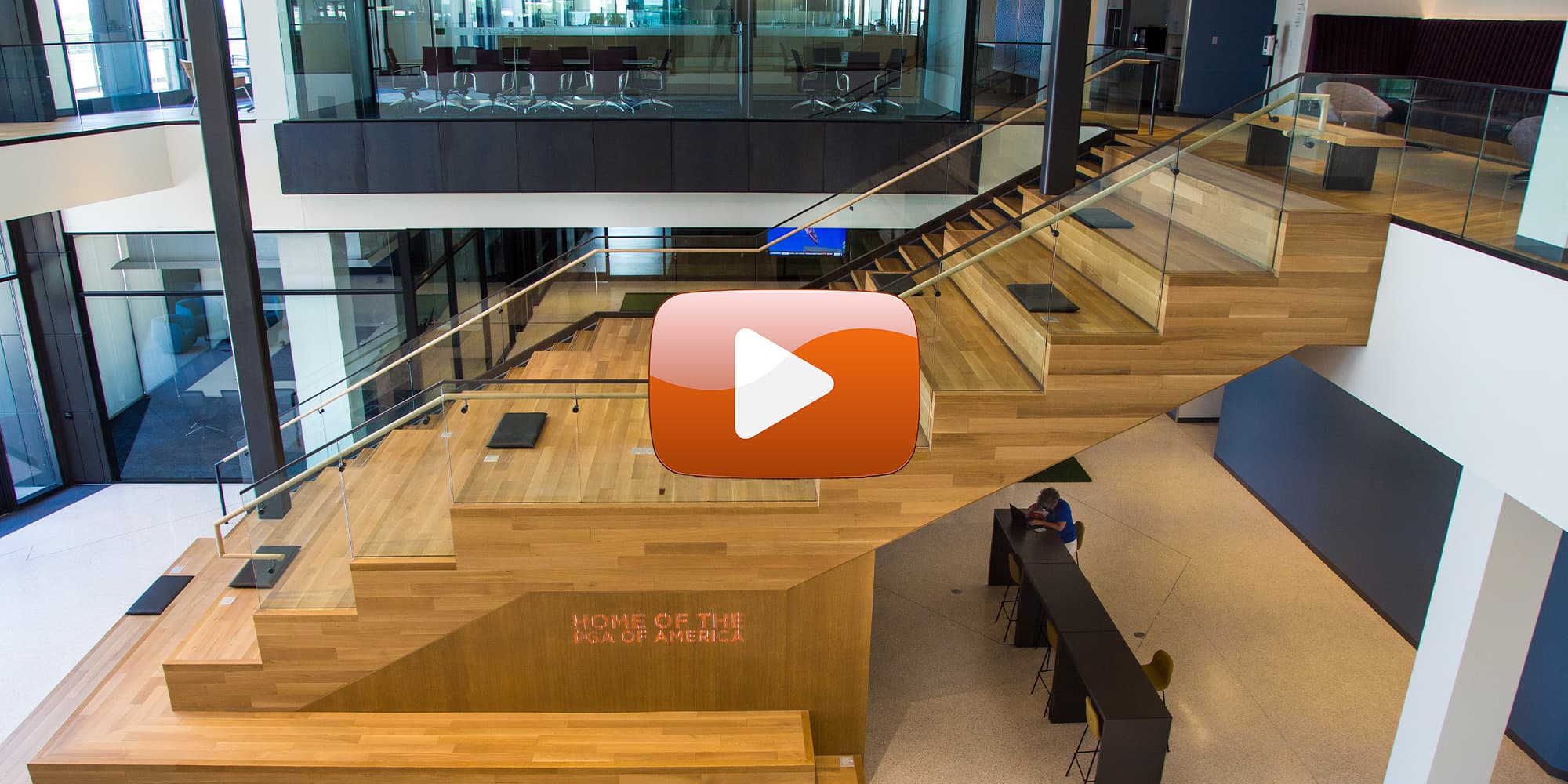

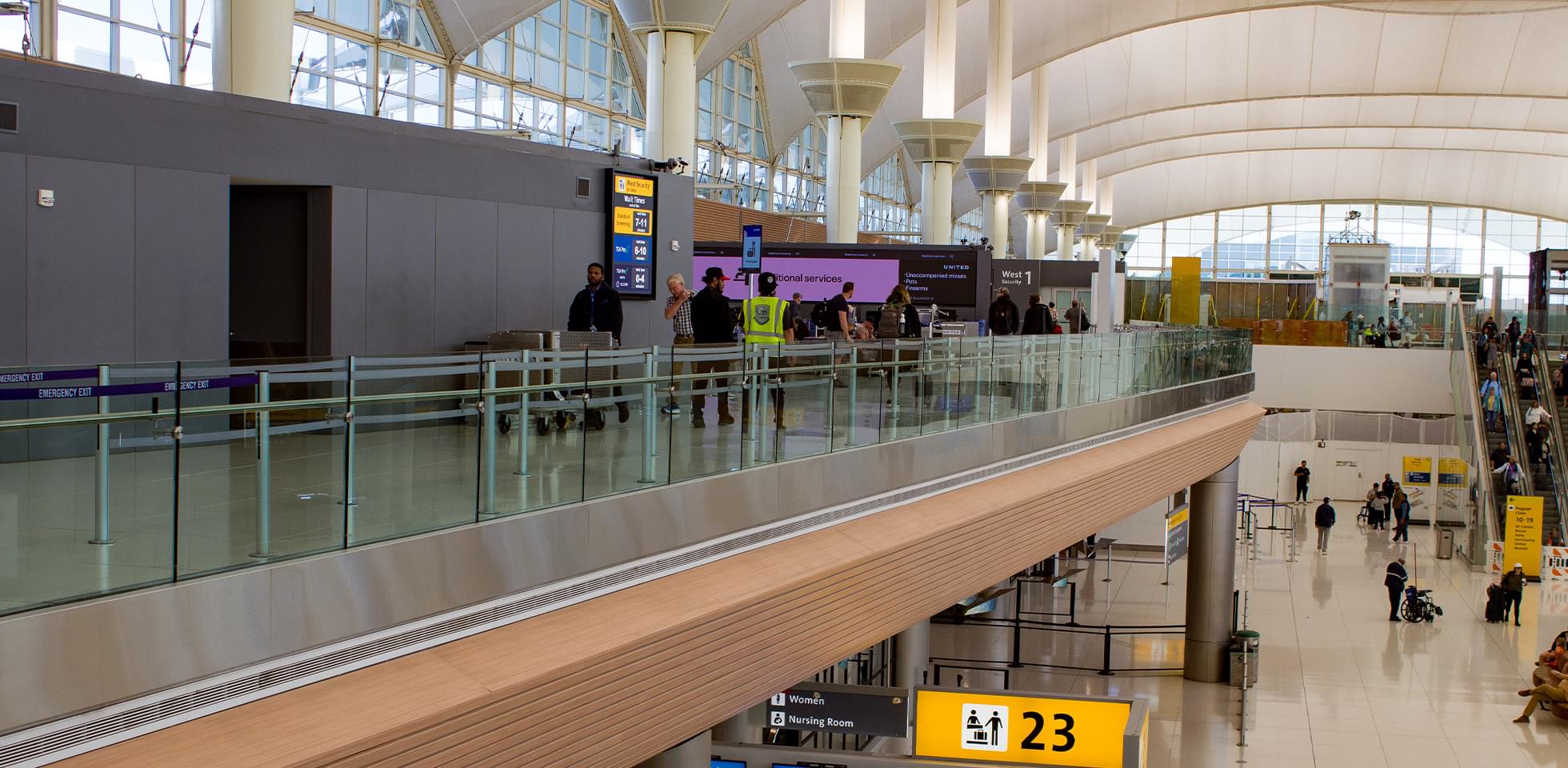

SHOE™ Structural Glass Railing System (U.S. Patent #9127474) is an aluminum glass railing system with a patented compression set aluminum base shoe system.  SHOE™ Glass Railing is a great choice for commercial interior or exterior, balcony railing or stair railing applications.

This architectural railing solution provides fall protection barrier without obstruction to view or an unsightly barrier.

SHOE™ Aluminum Glass Railing can be either top or fascia mounted. It is available with a glass bracket mounted handrail, round top cap or a U-channel top cap.

VIVA Railings dry set system reduces the installation time by almost 50%, hence a reduced final cost to the customer.

LED illumination is available in the handrail, top cap or even in the SHOE™ base.  Lighting the SHOE™ base or top cap provides a glow to the glass panel.
This glow becomes even more dramatic with an etched pattern or logo which catches the emitted light.  VIVA’s iRAIL Product Line is ETL Certified; the ETL Mark is proof of product compliance to North American safety standards.


Quick Ship: Up to 50% reduced lead time available.  Additional costs may apply.

WATERPROOF SHOE SYSTEM APPLICATIONS


VIVA Railings has partnered with SIKA Corporation for Waterproof SHOE System applications. Glass panels are embedded into VIVA base SHOE using Sika’s 2-Component self-leveling polymer grout and weather sealants. This is an ideal combination of products to provide a watertight joint backed by a waterproofing warranty from Sika and a standard product warranty from VIVA Railings.

*This waterproofing solution is not standard and is available upon special request only.

VIVA RAILINGS has received confirmation from ICC Evaluation Service, LLC (ICC-ES), that its SHOE GLASS PANEL RAILING SYSTEM complies with the provisions of the following building codes.

  • International Building Code (IBC 2012-2021)
  • International Residential Code (IRC 2012-2021)
  • California Building Code (CBC 2019-2022)
  • California Residential Code (CBC 2019-2022)
  • Florida Building Code – Building (FBC 2020) includes Wind Borne Debris Regions & High Velocity Hurricane Zone (HVHZ)
  • Florida Building Code – Residential (FBC 2020) includes Wind Borne Debris Regions & High Velocity Hurricane Zone (HVHZ)

This confirmation, as evidence in ICC-ES evaluation report ESR-4405, provides guidance to code officials faced with approving the use of SHOE GLASS PANEL RAILING SYSTEM under these codes. The evaluation report is available online at www.icc-es.org.

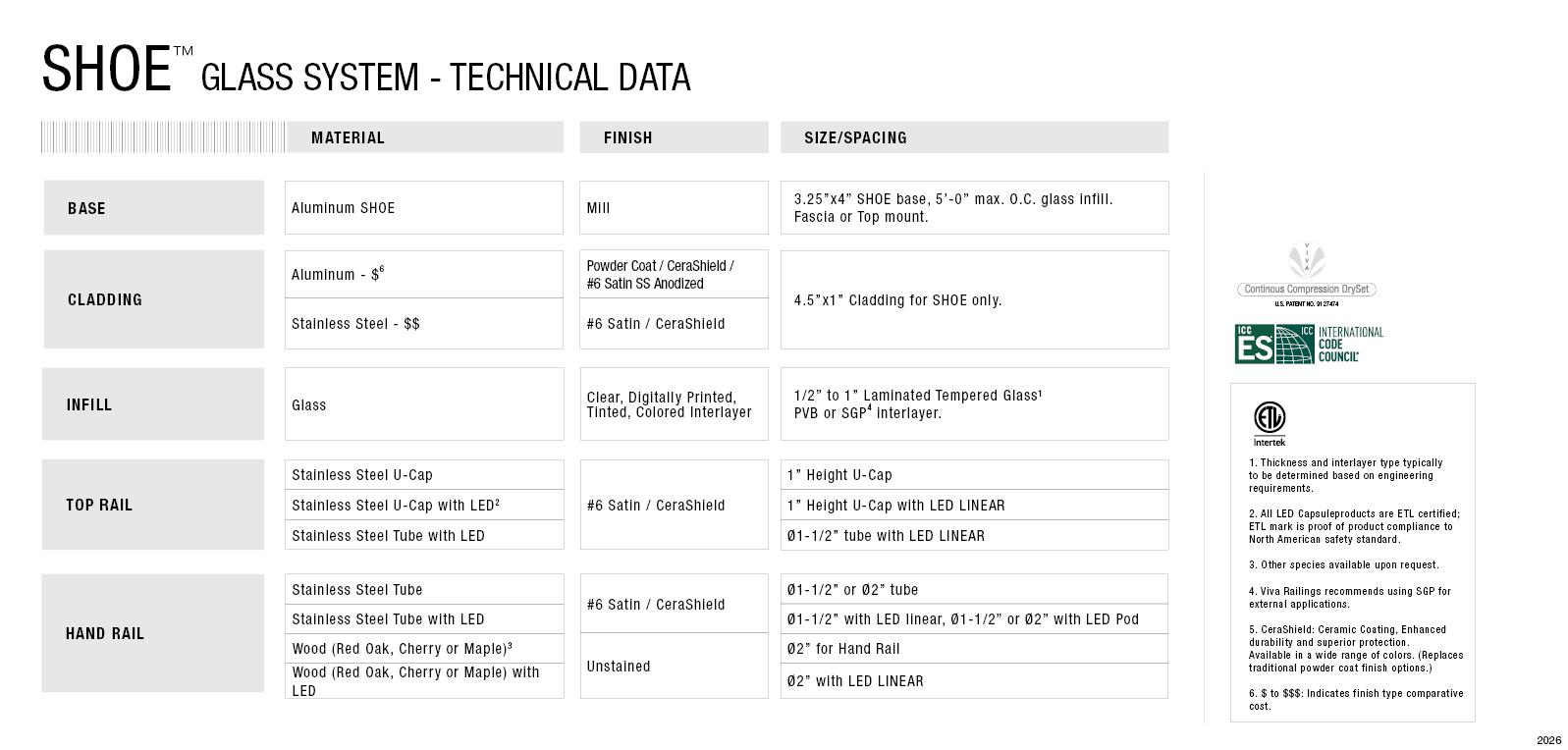

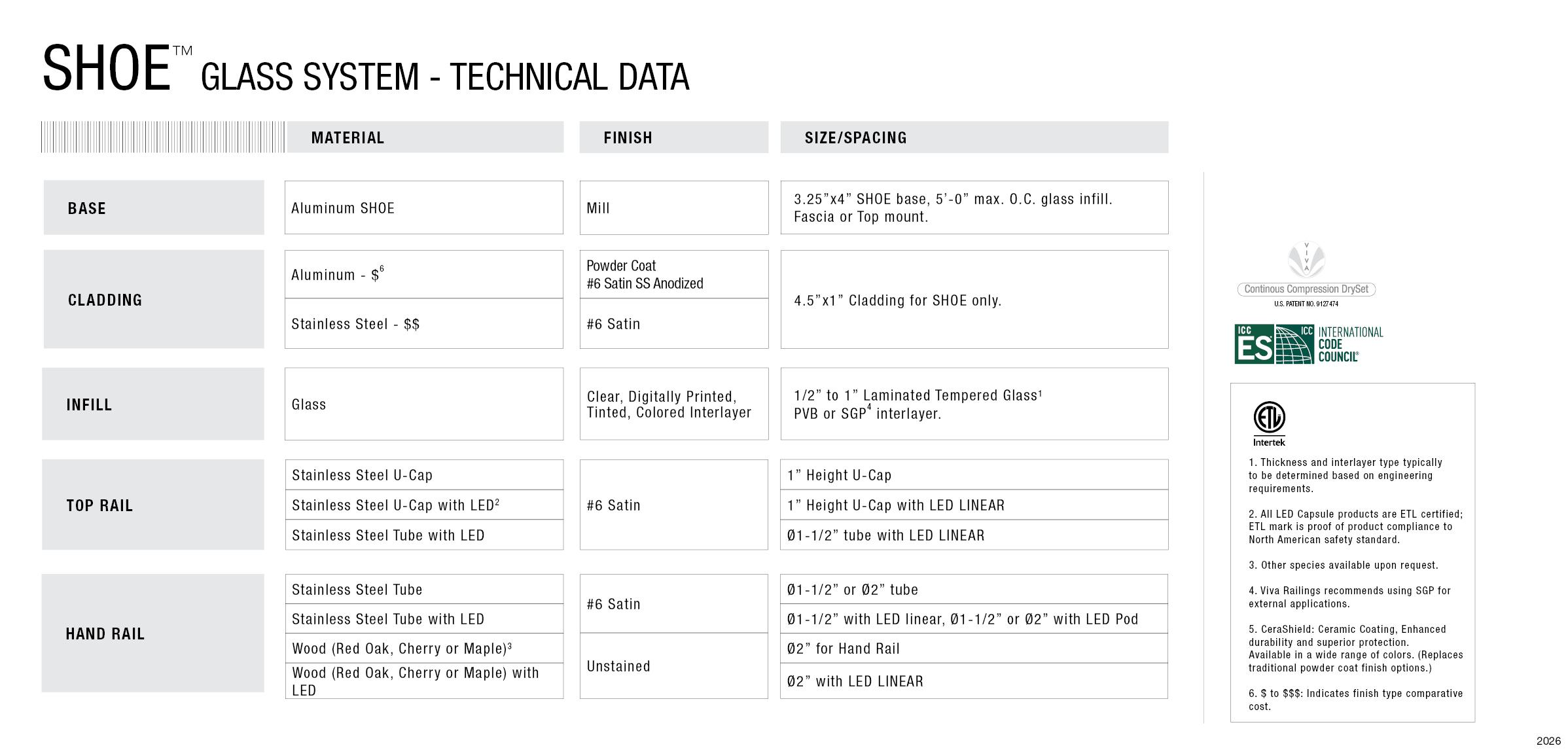

 Infill  |  Mounting Finishes Glass

SHOE™ Infill Options

  • GLASS

SHOE™ Mounting Options

  • TOP
  • FASCIA

SHOE™ Finishing Options

  • STAINLESS STEEL
  • POWDER COAT

SHOE™ Glass Options

  • BENT
  • TINTED
  • SATIN
  • LAMINATED
