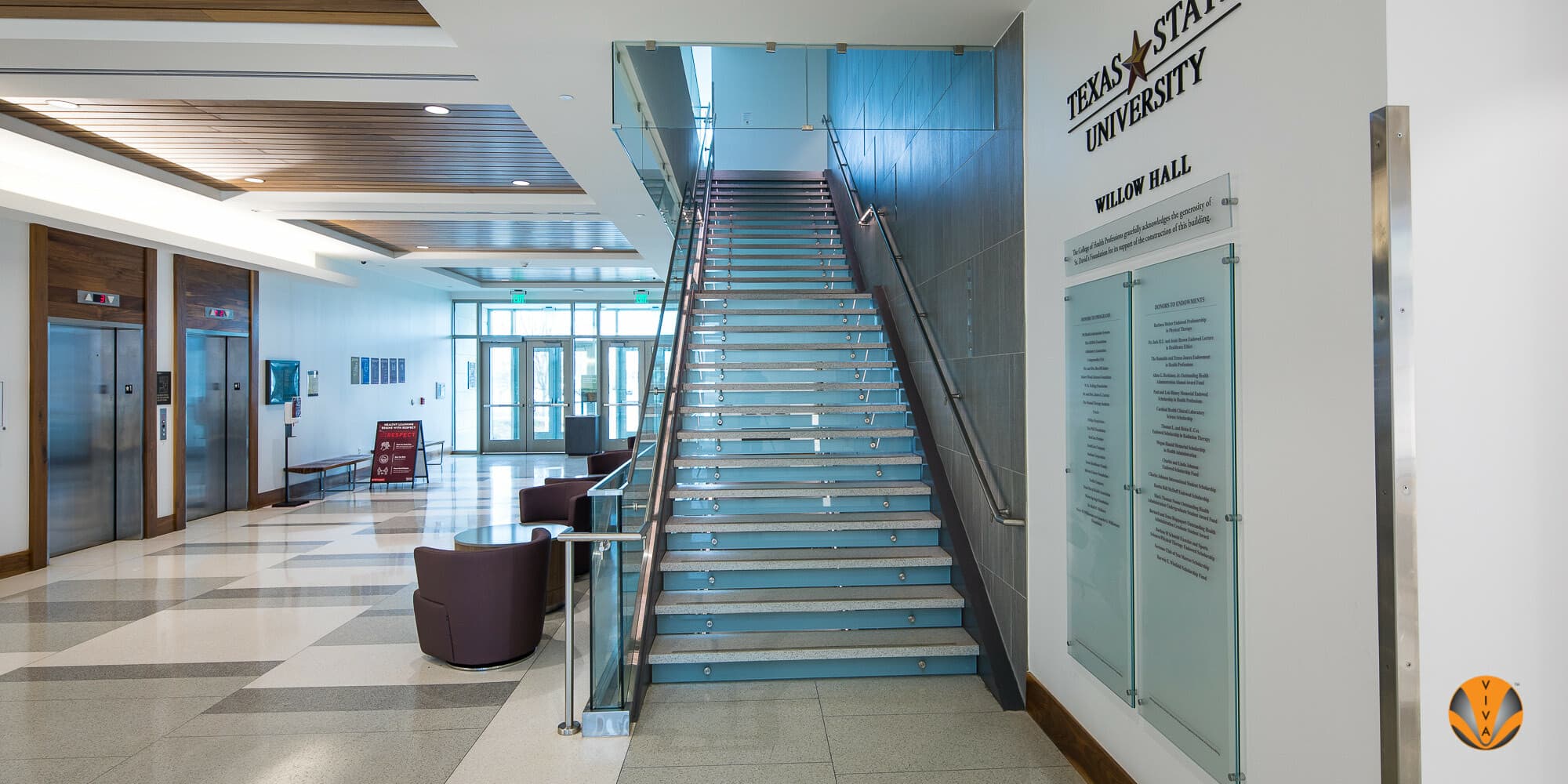

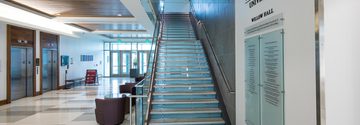

SHOE Structural Glass Railing System

TSU Round Rock Health Center

Products Used:

Project Overview

Category: Medical
Location: Round Rock, TX
General Contractor: Anchor-Ventana Glass
Architect: Barnes, Gromatzky, Kosarek Architects

Our SHOE™ Structural Glass Railing System is an aluminum glass railing system with a patented compression set aluminum base shoe system. SHOE™ Glass Railing is perfect for commercial interior or exterior, balcony railing or stair railing applications. In addition, this architectural railing solution provides a fall protection system without the use of an unsightly barrier. SHOE™ Aluminum Glass Railing can be either top or fascia mounted. It is available with a glass bracket mounted handrail, round top cap or a U-channel top cap. Base shoe is available in stainless steel or an anodized aluminum cladding.

VIVA’s tempered glass infills provide optimal line of sight as well as an understated elegance. Our glass infills range from a minimum of 3/8″ PVB or SGP laminated glass. Colored, patterned and frosted glass are additional options based on design intent and need.

Our Smoke Baffle System seamlessly balances safety and aesthetics. Today’s fire codes often require building smoke curtains in the event of a fire emergency. The Smoke Baffle system provides inconspicuous smoke barriers between slab openings, level changes or divisions of areas. The Smoke Baffle is available in the following finishes: Stainless Steel, Powder Coat Standard, Custom Colors or Anodized Aluminum.

Our iRAIL™ System is a LED illuminated version of our 1.5” diameter rails. iRAIL uses an ADA compliant roll-formed (monolithic) slotted rail, that houses a high-performance LED assembly. VIVA iRAIL™ uses a specially designed LED that can provide full-length coverage of illumination for whatever your rail run may be, compared to the traditional LED railing assemblies that were only available in preset section lengths. Lighting is available in warm or bright white with either a clear or diffused lens.


Anchor-Ventana Glass is all about relationships. Founded in 1977, it has continued to thrive to over 90 employees with a collective 500 hours worth of experience.

Barnes, Gromatzky, Kosarek Architects is a HUB Certified architecture firm with expertise in cultural and civic buildings, student centers, commercial and workplace environments.

TSU Round Rock Health Center – Round Rock, TX

The new TSU Round Rock Health Center is a facility for all Texas State Students to receive medical services as well as vaccines and travel health appointments.
