iRAIL™ Linear

iRAIL™ Linear

iRAIL LED Linear Illuminated Railings

iRAIL™ LED Illuminated Systems


iRAIL™ Linear – is a LED illuminated version of our 1.5” dia. rail. iRAIL uses an ADA compliant roll-formed (monolithic) slotted rail, that houses a high-performance LED assembly. VIVA iRAIL™ Linear uses a specially designed LED that can provide full-length coverage of illumination for whatever your rail run may be, compared to the traditional LED railing assemblies that were only available in preset section lengths. Lighting is available in warm or bright white with either a clear or diffused lens.

iRAIL LED Pods Illuminated Railings

Also available:  LED Pods

iRAIL™ Pods is a versatile illumination option to any type of tubular rail – round, square or rectangular, standard available is 1.5” or 2” dia. Housed in every pod is a cluster of high intensity LED, these pods can be spaced at 18” to 36” o.c. depending upon the amount of illuminance desired. Pods are a great option for retrofits, vandalism deterrent, and variable lighting levels. These Pods can also be placed in posts for vertical illumination.

iRAIL LED Capsule Illuminated Railings

LED Capsule

iRAIL™ LED Capsule Illuminated Railing by VIVA Railings. This sleek and versatile lighting solution seamlessly integrates into round or square 2x2” diameter posts, providing exceptional brightness and clarity. With adjustable spacing for customizable illuminance, choose between diffused warm or bright white lighting. Upgrade your railing system and transform your space with VIVA Railings' modern design and advanced lighting technology.


LED provides a sustainable and GREEN alternative to conventional lighting methods, due to its high service life & lighting intensity, and low power consumption. iRAIL™ LED illuminated railings uses low voltage DC power supply.

Use with any of our railings systems for the handrail, top rail, or wall rail applications.

Product Resources

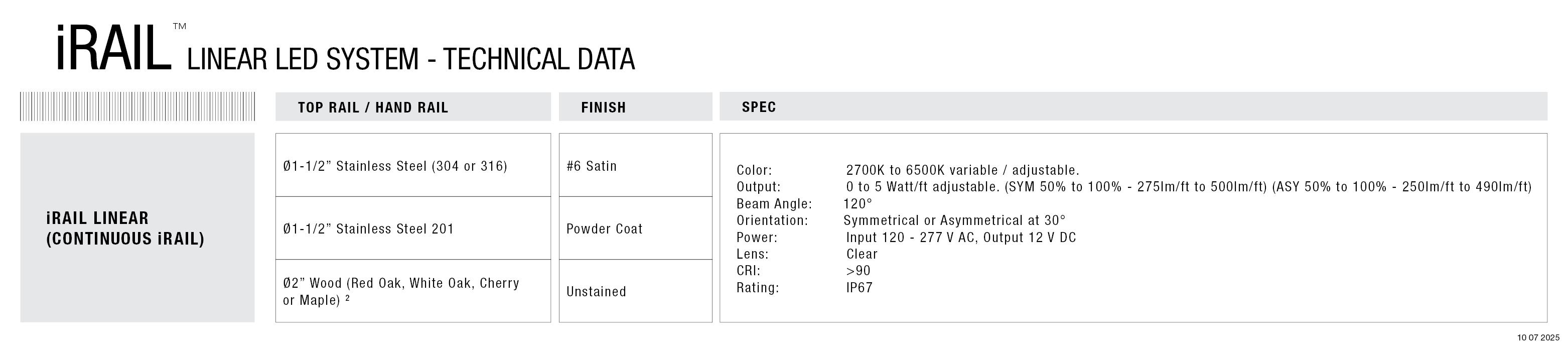

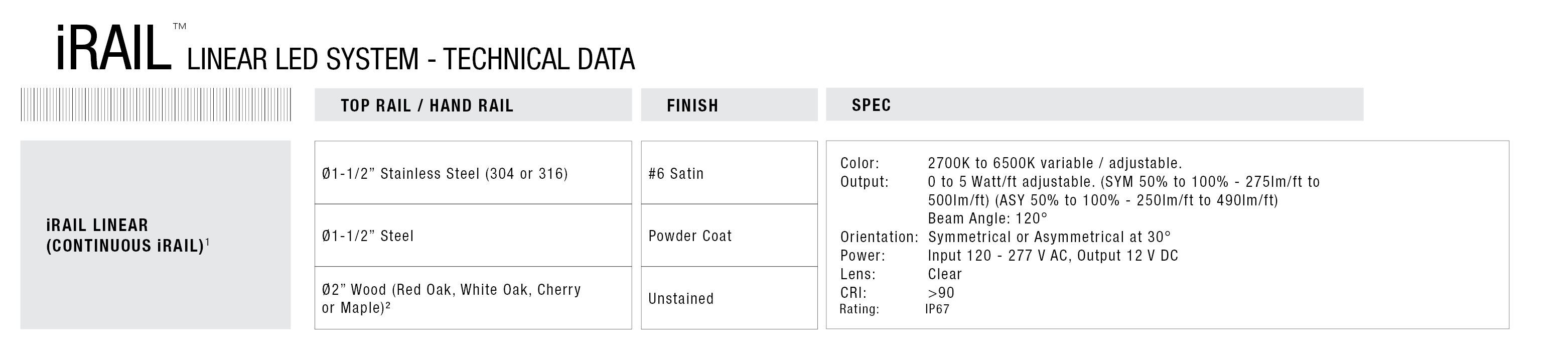

Product Data iRAIL
CAD Details iRAIL
iRAIL Linear IES Files
iRAIL Pods IES File
iRAIL™ Linear

See Product in Action

CIRCA GLASS RAILING PROSPER HIGH SCHOOL 10 of 14
Category: K-12
Location: Prosper, TX
  • CIRCA® Glass Railing System
  • CIRCA® Cable Railing System
  • FSR™ Free Standing Rail System
  • Wall Rail
  • iRAIL™ Linear
iRAIL Handrail Linear Illuminated Railing

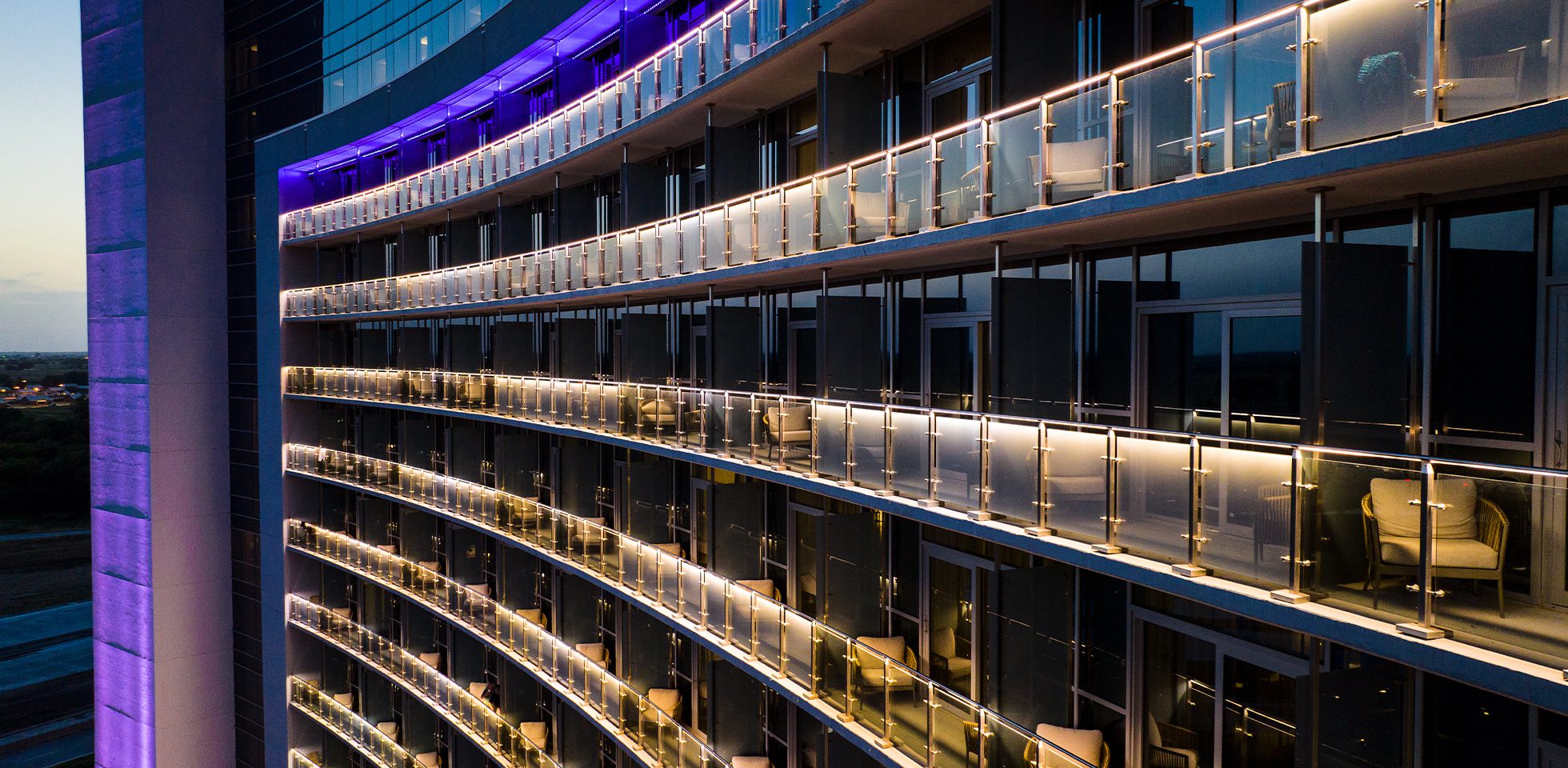

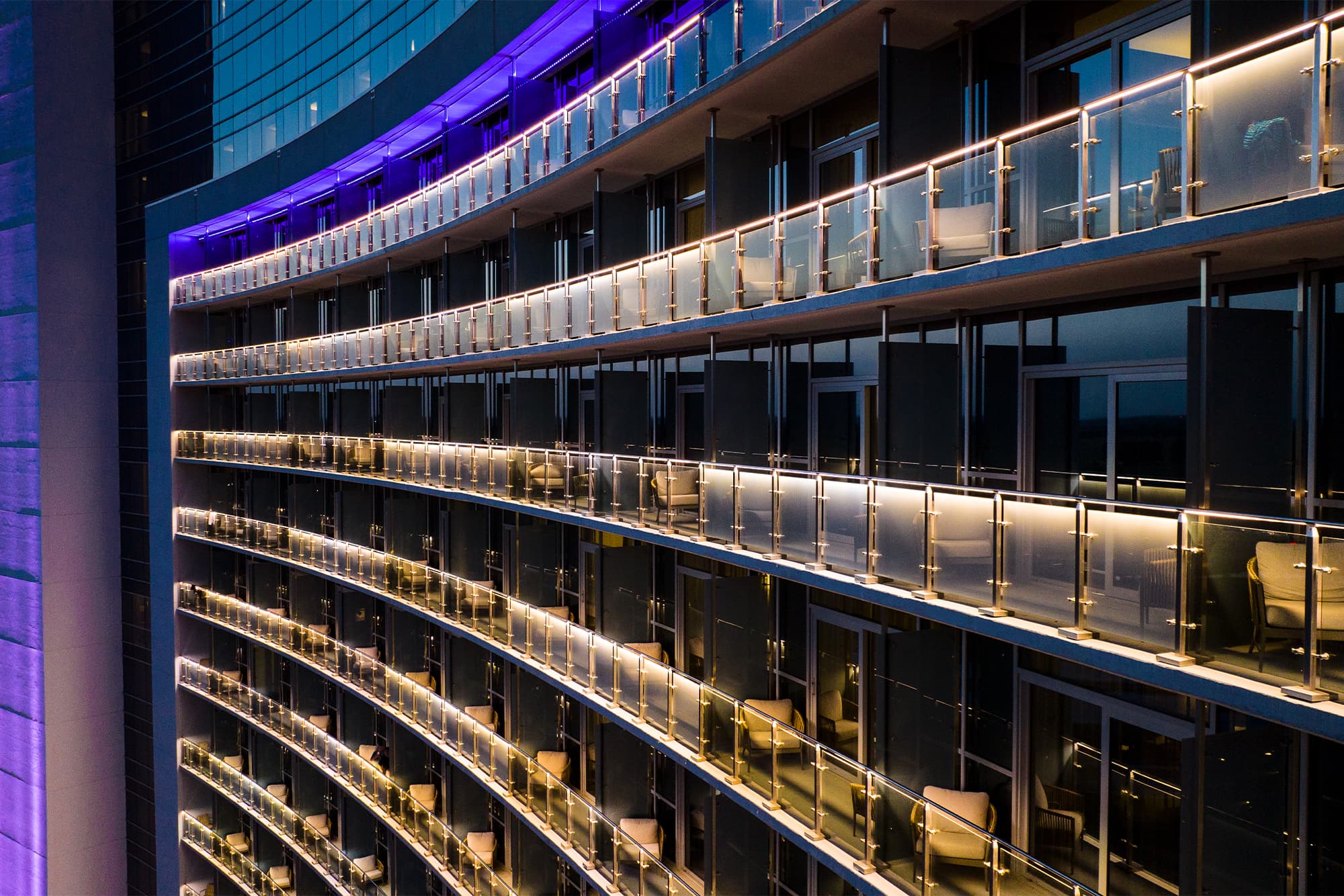

Category: Hospitality
Location: Durant, OK
  • CUBE™ Glass Railing System
  • iRAIL™ Linear
Struc Panel Railing System
Category: Universities
Location: Richardson, TX
  • STRUC™ Metal Panel Railing System
  • VIEW™ Glass Railing System
  • iRAIL™ Linear
iRAIL Handrail Linear Illuminated Railing
Category: Public
Location: Cedar Rapids, IA
  • CIRCA® Picket Railing System
  • iRAIL™ Linear
CUBE Stainless Steel Railing System
Category: Corporate
Location: Greensboro, NC
  • CUBE™ Cable Metal Railing System
  • iRAIL™ Linear
SHOE Glass Railing System FSR
Category: Headquarters
Location: The Colony, TX
  • SHOE™ Glass Railing System
  • iRAIL™ Linear
  • FSR™ Free Standing Rail System
  • SOLO™ Glass Railing System
  • SMOKE BAFFLE™ System
CIRCA Cable Railing System
Category: Universities
Location: Austin, TX
  • CIRCA® Cable Railing System
  • iRAIL™ Linear
iRAIL System is a LED illuminated version
Category: Commercial
Location: Dallas, TX
  • CUBE™ Cable Metal Railing System
  • iRAIL™ Linear
iRAIL™ System is a LED illuminated
Category: Retail
Location: The Colony, TX
  • SHOE™ Glass Railing System
  • iRAIL™ Linear
  • Wall Rail
  • FSR™ Free Standing Rail System
  • CIRCA® Glass Railing System
CIRCA Picket Railing System
Category: Public
Location: The Colony, TX
  • CIRCA® Picket Railing System
  • SHOE™ Glass Railing System
  • iRAIL™ Linear
  • Wall Rail
  • FSR™ Free Standing Rail System
  • CIRCA® Glass Railing System
VIVA RAILINGS CUBE IRAIL LED ARCHITECTURAL RAILING 26 of 42
Category: Private
Location: Carrollton, TX
  • CUBE™ Cable Metal Railing System
  • iRAIL™ Linear
