FSR™ Railing Systems

FSR – Free Standing Rails and posts both are available in 1.5” dia stainless steel in SS304 and SS316 alloys. iRail (LED lighted rail) option is also available for FSR. FSR post can be core mount, top flange mount, welded to steel or weld to concrete embed.

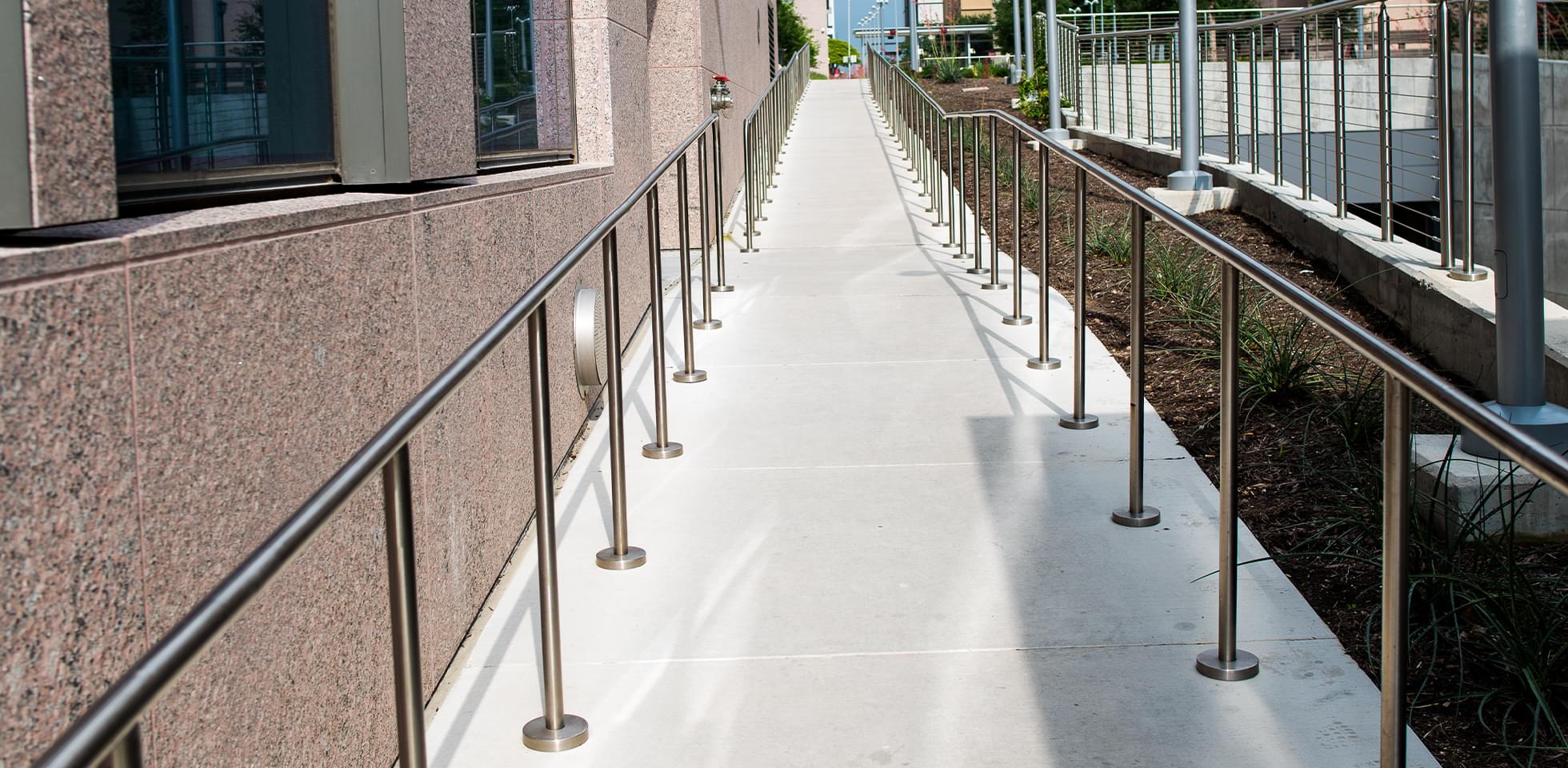

Typical applications for FSR are stadium seating rails, building entrance rails, ramps, landscaping rails, stair centerline rails etc.

Use with any of our systems for handrail, top rail or wall rail applications.

  • Rail – FSR Posts @ 4’ o.c. max. (Free Standing Rail)

  • Height –  36” or Custom (34”-38”)

  • Mount Type –  Top or Core Mounts

  • Assist Rail – 1½” Ø SS Rail; 2” Ø Wood Rail; 1½” Ø LED iRail

Finishing Options

  • Stainless Steel – #6 Brushed Satin in SS-304 or SS-316 alloy
  • Powder CoatPosts Only – 15 different shades available
  • PVD Coating in SS-304 and SS316 alloy (posts only)6 shades available

  • Wood (unstained) –  Red Oak, Cherry & Maple (other species avail on request)

  • iRail – (LED illuminated Rail) – 1½” Ø LED iRail available in Pure White & Warm White.

  • System Compatibility – With any VIVA RAiling Systems
