BEACON Post Supported Railing System
Engineered transparency for modern architecture. A certified, pre-engineered solution designed for structural integrity and versatile design adaptability.
EXECUTIVE SUMMARY
The BEACON Railing System by VIVA Railings combines modern design with unmatched versatility. Offering glass, perforated metal, wire mesh, cable, cablenet, and laser-cut infill options.
Code Compliant
Meets stringent safety standards including IBC, CBC, and FBC HVHZ for windborne debris resistance.
Modular Design
Pre-engineered components and CNC fabrication reduce on-site adjustments and ensure installation efficiency.
Design Freedom
Extensive finish options, glass types, and mounting conditions to match any architectural vision.
TECHNICAL DETAILS
Engineered for performance and durability.
Overview
Stainless steel flat bar posts (304 or 316) with spacing up to 5’-0” for glass infill and 4’-6” for perforated and mesh infills.
Glass & Metal Infill

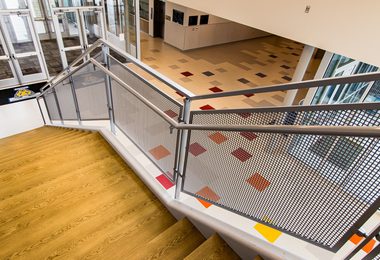

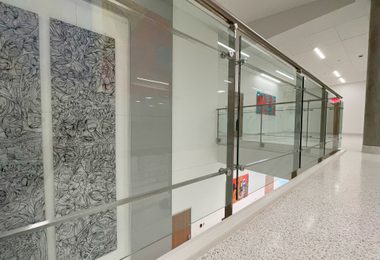

Laminated tempered glass, 3/8” to 3/4” thick, with SGP or PVB interlayers for superior strength. Perforated metal, wire mesh, stainless steel cable, cablenet, or laser-cut panels
Top Rail Options
Stainless steel tube, U-cap, or wood (maple, cherry, oak), with optional integrated iRAIL™ LED lighting.
Finish Options
Standard anodized and satin finishes, plus premium CeraShield™ Ceramic Coating for extreme environments.
Load Performance
Engineered to withstand uniform loads of 50 lbf/ft and concentrated loads of 200 lbf.
Certifications
ICC-ES ESR-4405, ETL Certified (illuminated options), and compliant with ASTM C1172 & C1048.
VIVA DIFFERENTIATORS
A partnership built on precision and expertise.
Pre-Engineered & Certified
Saves time in approvals and inspections with a fully certified system.
Design Assist Services
Early collaboration with architects and GCs to ensure code-compliant, cost-effective solutions.
CeraShield™ Finishing
Enhanced durability that outperforms standard powder coating in UV and corrosion tests.
Case Studies
Trusted by leading architects and contractors on landmark projects.
START YOUR PROJECT
Empower your design with engineered performance and elegance.
VIVA Railings’ BEACON Railing System offers architects a versatile platform for creativity, safety, and modern design. Its proven durability and aesthetic flexibility make it a standout solution for contemporary building projects.
