Wall Rail

Product Overview

Wall Rail

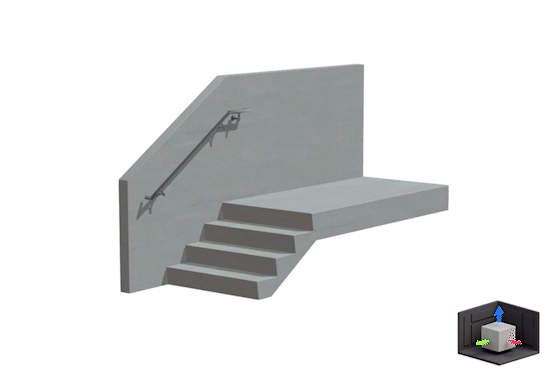

Our Wall Rail is an additional option available with any of the railing systems for use on stairs or ramps. The standard VIVA Wall Rail uses ingeniously designed conical brackets that can be mounted on drywall, CMU, concrete, tile, stone or steel. In addition, our use of concealed fasteners provide stability without unsightly flange or covers. VIVA Wall Rail is primarily offered in standard 1.5″ dia. stainless steel but other metal and wood profiles are available as well. Wall Rail also comes with lighted rail options.

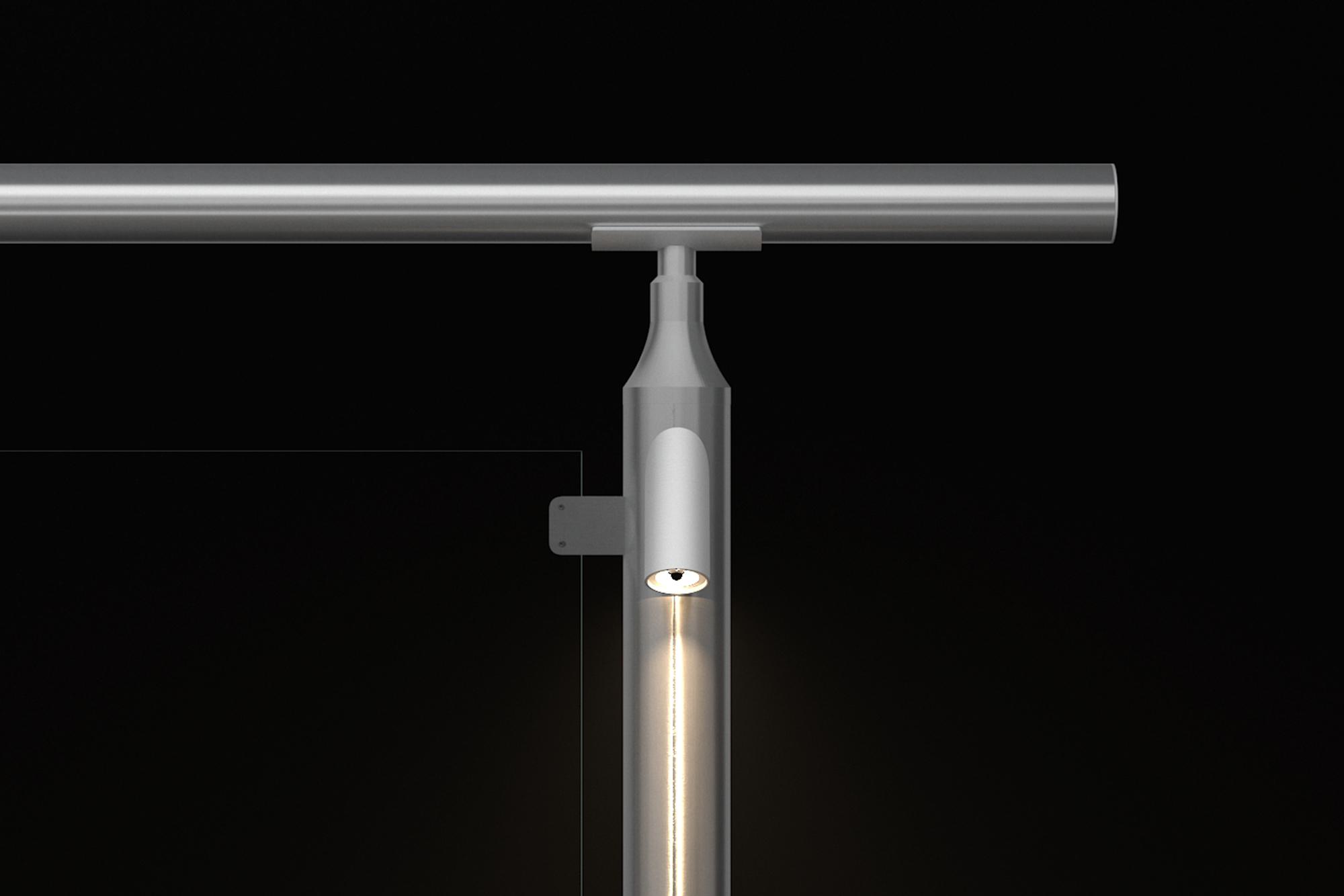

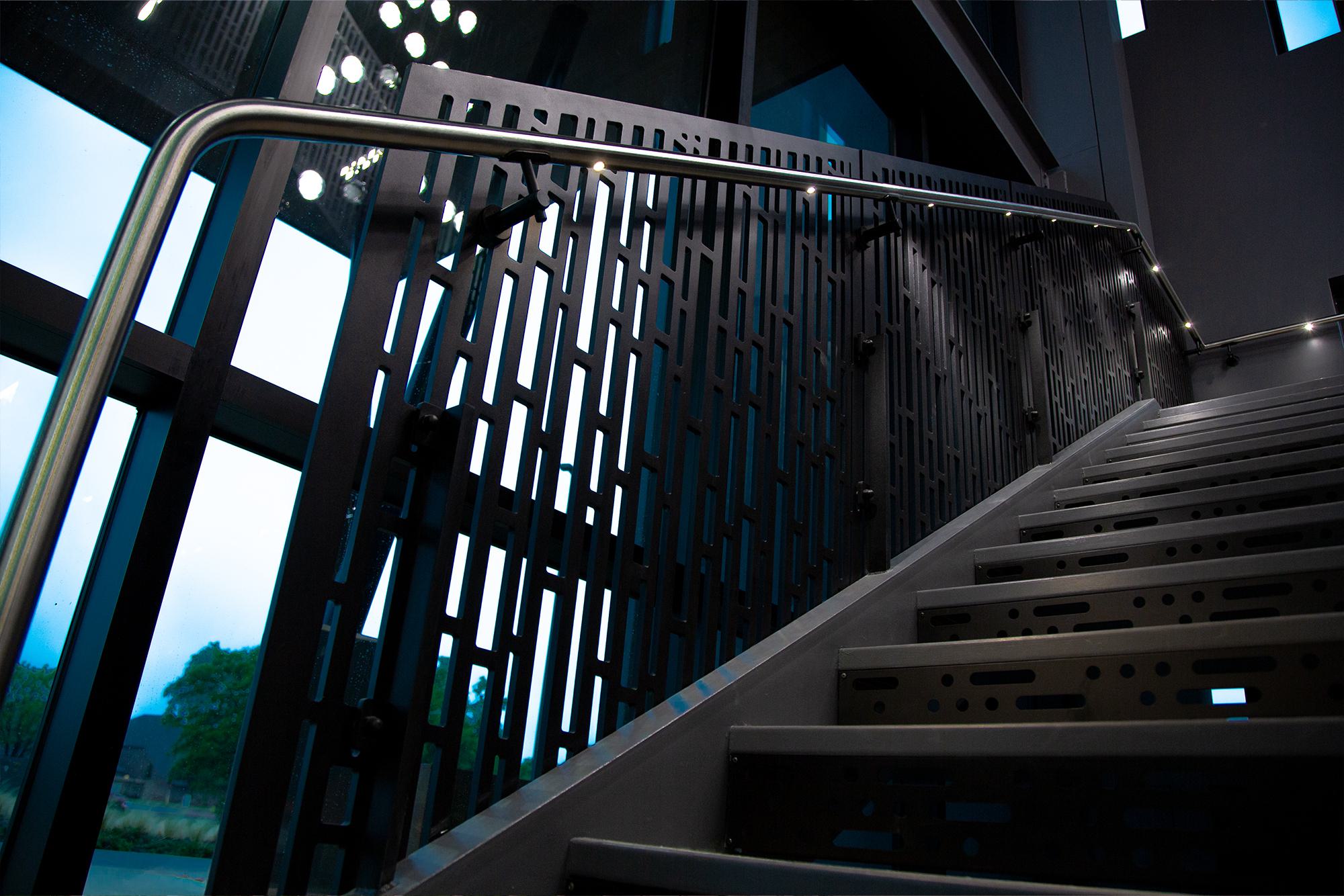

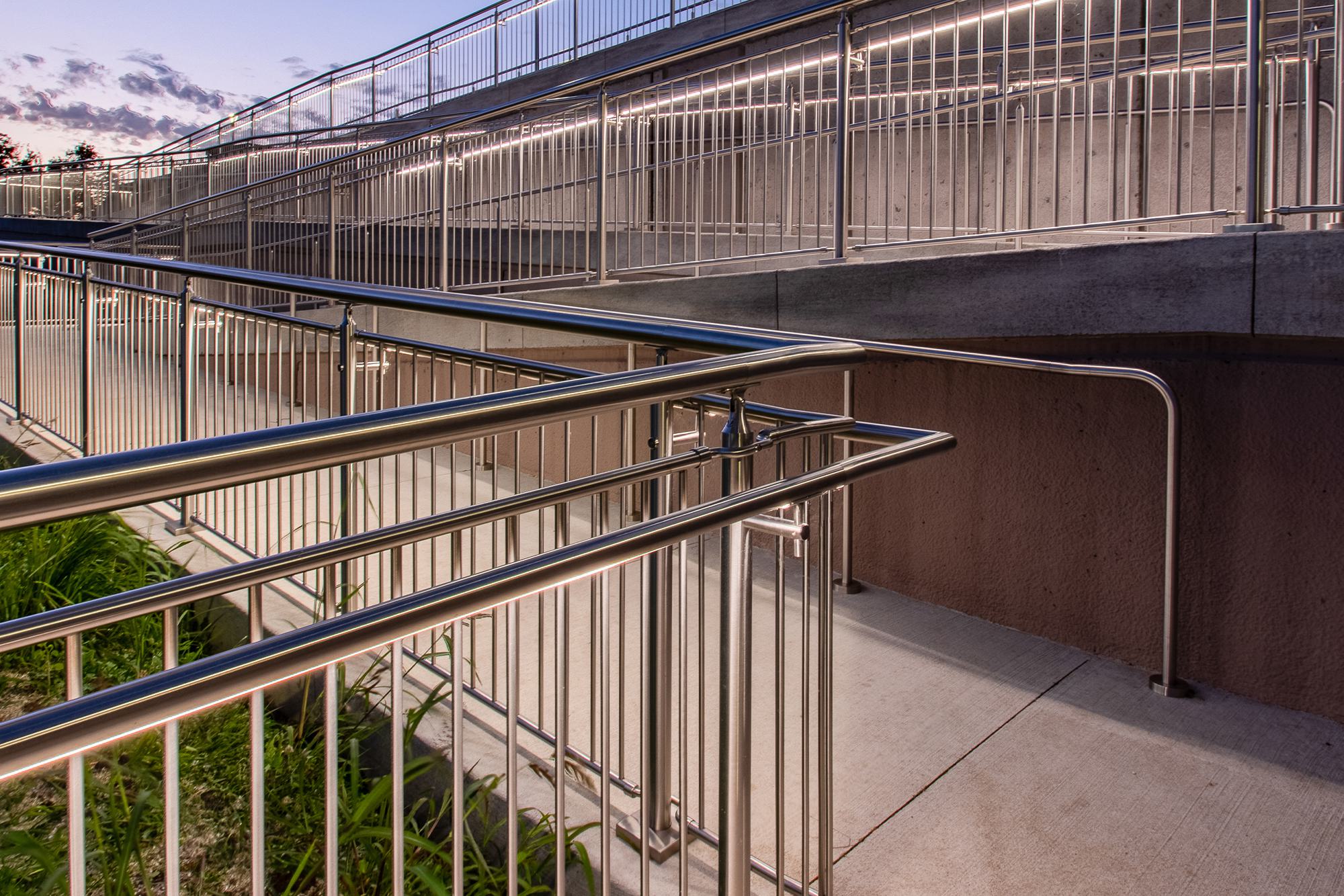

Available Lighted Rail options:

Home

Product Resources

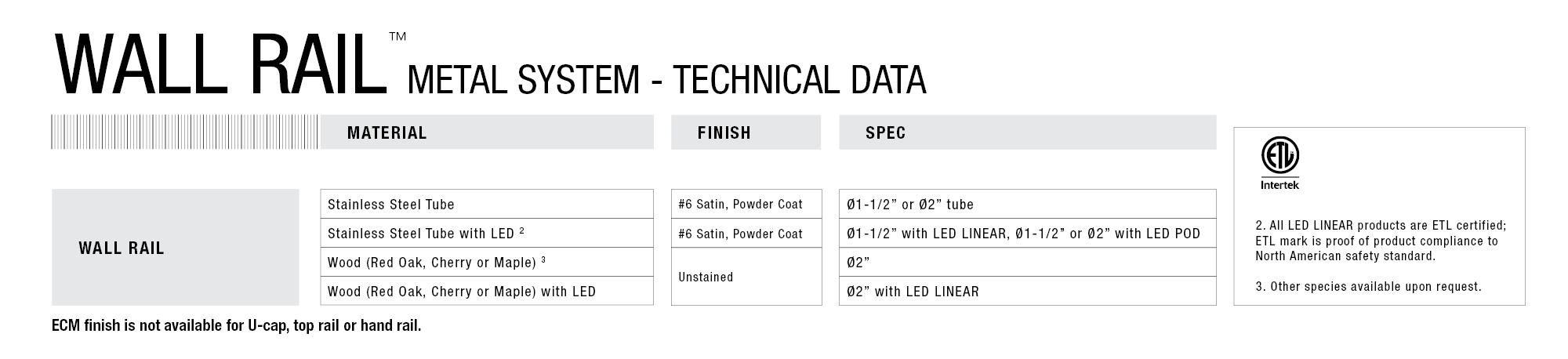

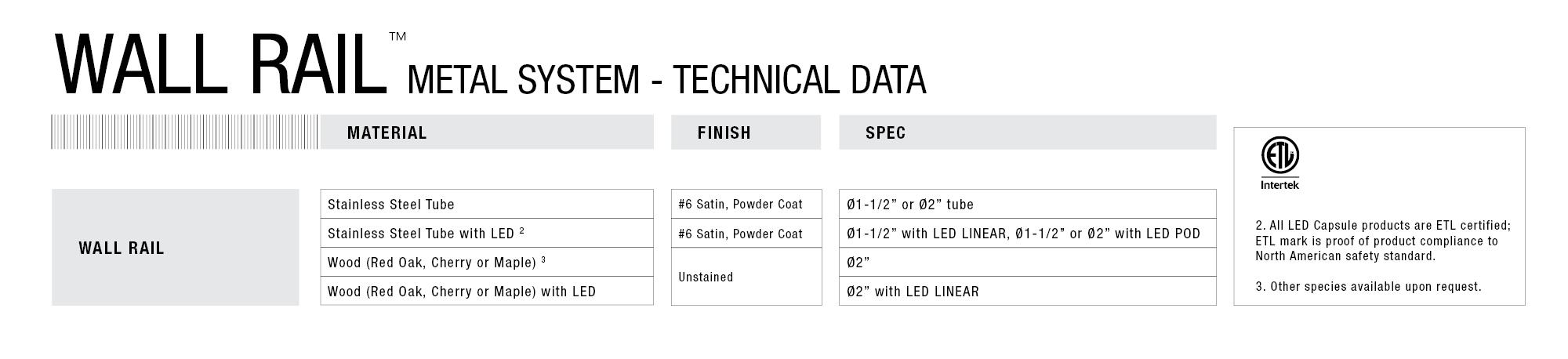

Product Data WALL RAIL
CAD Details WALL RAIL
POWDER COAT Standard Finish
Viva logo
SS #6 SATIN
Powder Coat
POWDER COAT
ECM
ECM Finish Colored SS
Wall Rail
