Modular Wall Panels

Name: VIVA Railings
Price range: $

A fully integrated wall panel system for facades and feature walls, combining custom design, engineering, fabrication, and optional installation. WallScapes designs are achieved through standard patterns, custom laser-cut solutions, or FotoFacade™ Metal Imaging Systems, enabling visually distinctive, high-performance surfaces across exterior and interior applications.

Start Your Design View Product Data (Flat) View Product Data (Formed) Request a Quote

Turnkey (primary) or supply-only

Delivery Model

30+

PATTERNS

Al, SS, S

MATERIALS

07 42200

CSI DIVISION

Select your panel type to begin

Patterns

Turnkey architectural wall systems engineered to perform and designed to elevate modern spaces.

Turnkey (primary) or supply-only

FotoFacade™ Imaging

Metal Imaging. Unlimited Expression.

Turnkey (primary) or supply-only

Landscape & Fence

A freestanding architectural screen and fence system designed for exterior landscape, privacy, and site definition applications.

CSI Specs

Download specification documents for both panel types

DOC ↓

STEP 1 — CHOOSE YOUR PANEL TYPE

Which is Right For Your Project?

WallScapes designs are achieved through standard patterns, custom laser-cut solutions, or FotoFacade™ Metal Imaging Systems, enabling visually distinctive, high-performance surfaces across exterior and interior applications.

WALLSCAPES

Patterns

✓
True Turnkey Delivery
✓
Unlimited Design Expression
✓
Material & Finish Range: Aluminum, Stainless Steel, and Steel
✓
Engineered Mounting Flexibility
✓
Proven Performance

ApplicationInterior or Exterior

FastenersExposed (FLT) / SF1 & SF2 Hidden

Panel modulesFlat, Single Fold, Double Fold

Panel TypeFlat, Single Fold, Double Fold

Best For

lobbies, atriums, and signature corridors

WALLSCAPES

FotoFacade Imaging

✓
Proven Performance

ApplicationInterior + Exterior (<30 PSI, SF1) / Interior + Exterior (<70PSI, SF2)

FastenersExposed (FLT) / Hidden (SF1, SF2)

Panel modulesFlat, Single Fold, Double Fold

Panel TypeFlat, Single Fold, Double Fold

Best For

Privacy screens and landscape dividers: commercial, hospitality, multifamily, and institutional outdoor spaces

View WallScapes Specs

WALLSCAPES

Landscape and Fence

Fence PanelsStandard 8ft (44x92 and 48x92)

Material RangeAl (1/8", 3/16", 1/4"), SS 14Ga, S 14Ga & 11 Ga

Best For

Commercial, hospitality, multifamily, and institutional outdoor spaces

ENGINEERING RESOURCES

Downloads & Documentation

Everything your team needs to specify, detail, and install PanelScapes — from CSI specs to installation guides.

Product Data

Formed Panel — Product Data

Standard sizes, weights, and configurations for Formed Panel system

Product Data

Flat Panel — Product Data

Standard sizes, weights, and configurations for Flat Panel system

Product Matrix

Formed Panel — Product Matrix

Standard sizes, weights, and configurations for Formed Panel system

Product Matrix

Flat Panel — Product Matrix

Standard sizes, weights, and configurations for Flat Panel system

STEP 2 — REVIEW SPECIFICATIONS

Material & Weight Data

Same materials available across both Flat and Formed panels. Weight data applies to 30% open laser-cut patterns as well as solid panels.

SURFACE FINISHESBy Material

MATERIAL	FINISH OPTIONS
Aluminum	Powder Coat AAMA 2604
Stainless Steel	Brushed Satin · Glass Bead Satin · Cross Hatch · Swirl
Stainless Steel	Zinc Rich Primer + Powder Coat · Mill Finish

💡 All panels available as solid or laser-cut perforated. Custom patterns available on request

↓ Flat Panel Matrix (JPG) ↓ Formed Panel Matrix (JPG)

STEP 3 — CHOOSE YOUR PATTERN

Pattern Collections

30+ curated patterns across three categories — Primary, Geometric, and Organic. Filter by design intent, or specify a custom pattern. All available as solid or laser-cut.

PP-01

PALLADIAN

PP-03

SCHOTTISCHE

PG-05

PG-06

GEOMETRIC

PO-11

FYLLO

PO 12

VERGANO

🎨

Showing 6 of 30+ available patterns. The full pattern library — including Primary, Geometric, and Organic categories — is accessible in the Panel Builder tool. Custom patterns and solid panels are available on request. Visit vivarailings.com/laser-cut-metal-patterns to browse the complete WallScapes library.

Browse All Patterns in Panel Builder ↗

STEP 4 — UNDERSTAND INSTALLATION

Mounting Systems

Installation is by your contractor of choice — compatible with any framing, glazing, interior, façade, or millwork contractor. Two primary methods, each with four corner/end conditions

Method 1 · FLATChannel Wall Attachment

Panels offset from wall via a proprietary channel — creates depth and a dimensional look. Channel fastens to structure; panels clip in. Typical offset: 1⅝". Interior fastener: Sq. Drive #10×1. Exterior: Drill-Flex ¼×1⅝" with washer.

A · End PanelB · Middle ChannelC · Outer CornerD · Inner Corner

Method 2 · FLATDirect Wall Attachment

Thin, minimalistic look. Panels attach directly to the wall substrate. Anchors supplied by others. No channel offset — flush to wall surface. Clean, tight appearance preferred for interiors where minimal depth is key.

A · End PanelB · Middle ConnectionC · Outer CornerD · Inner Corner

WHERE PANELSCAPES WORKS

Applications

PanelScapes covers a broad range of architectural and commercial applications. Both Flat and Formed panels work across these use cases — Formed adds exterior capability.

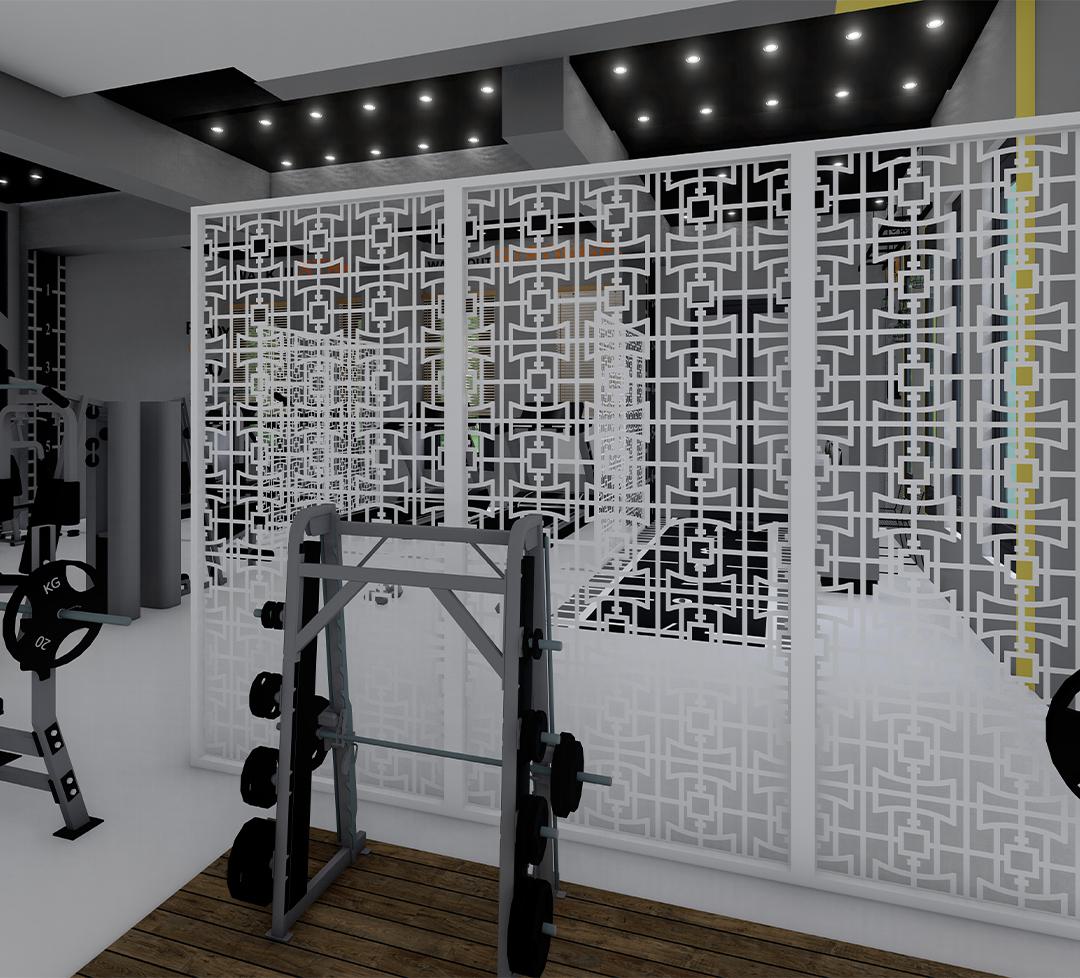

INTERIOR

Lobbies, Corridors & Elevator Surrounds

Both Flat and Formed panels create striking interior feature walls. Pattern choice drives the mood — geometric for corporate, organic for hospitality.
