VIEW Structural Glass Railing System
Engineered transparency for modern architecture. A certified, pre-engineered solution designed for structural integrity and versatile design adaptability.
EXECUTIVE SUMMARY
With its signature conical VIEW bracket, sleek single-post design, and wide range of glass and finish options, the system delivers both elegance and strength. The VIEW system is engineered for safety, versatility, and contemporary aesthetics, making it an ideal choice for universities, corporate offices, hospitality spaces, and public institutions.
Code Compliant
Meets stringent safety standards including IBC, CBC, and FBC HVHZ for windborne debris resistance.
Modular Design
Pre-engineered components and CNC fabrication reduce on-site adjustments and ensure installation efficiency.
Design Freedom
Extensive finish options, glass types, and mounting conditions to match any architectural vision.
TECHNICAL DETAILS
Engineered for performance and durability.
Unique Design
Conical bracket design enhances both the visual appeal and the stability of glass panels,
Glass Infill
Glass Thickness: Minimum 1/2” SGP laminated or 5/8” PVB laminated glass, per IBC 2015+ requirements.
Top Rail Options
Stainless steel tube, U-cap, or wood (maple, cherry, oak), with optional integrated iRAIL™ LED lighting.
Finish Options
Standard anodized and satin finishes, plus premium CeraShield™ Ceramic Coating for extreme environments.
Load Performance
Engineered to withstand uniform loads of 50 lbf/ft and concentrated loads of 200 lbf.
Certifications
ICC-ES ESR-4405, ETL Certified (illuminated options), and compliant with ASTM C1172 & C1048.
VIVA DIFFERENTIATORS
A partnership built on precision and expertise.
Pre-Engineered & Certified
Saves time in approvals and inspections with a fully certified system.
Design Assist Services
Early collaboration with architects and GCs to ensure code-compliant, cost-effective solutions.
CeraShield™ Finishing
Enhanced durability that outperforms standard powder coating in UV and corrosion tests.

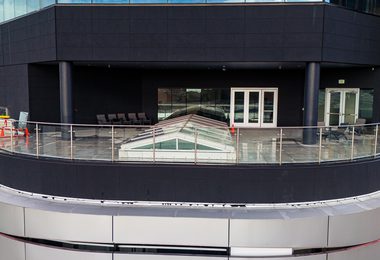

Case Studies
Trusted by leading architects and contractors on landmark projects.
START YOUR PROJECT
Empower your design with engineered performance and elegance.
With its conical bracket innovation, compliance with modern codes, and customizable finishing options, VIEW represents the ideal solution for contemporary projects requiring sleek aesthetics and enduring performance.
