SHOE™ Structural Glass Railing System
Engineered transparency for modern architecture. A certified, pre-engineered solution designed for structural integrity and versatile design adaptability.
EXECUTIVE SUMMARY
The SHOE™ system delivers unobstructed views through a patented compression set base shoe and pre-engineered modular components, blending cutting-edge engineering with architectural elegance. It is ICC-ES ESR-4405 Certified and compliant with IBC, CBC, and Florida Building Code standards.
Code Compliant
Meets stringent safety standards including IBC, CBC, and FBC HVHZ for windborne debris resistance.
Modular Design
Pre-engineered components and CNC fabrication reduce on-site adjustments and ensure installation efficiency.
Design Freedom
Extensive finish options, glass types, and mounting conditions to match any architectural vision.
TECHNICAL DETAILS
Engineered for performance and durability.
Base Shoe
Aluminum 3.25”x4” profile, available in fascia or top-mounted configurations.
Glass Infill
Laminated tempered glass, ½” to 1” thick, with SGP or PVB interlayers for superior strength.
Top Rail Options
Stainless steel tube, U-cap, or wood (maple, cherry, oak), with optional integrated iRAIL™ LED lighting.
Finish Options
Standard anodized and satin finishes, plus premium CeraShield™ Ceramic Coating for extreme environments.
Load Performance
Engineered to withstand uniform loads of 50 lbf/ft and concentrated loads of 200 lbf.
Certifications
ICC-ES ESR-4405, ETL Certified (illuminated options), and compliant with ASTM C1172 & C1048.
VIVA DIFFERENTIATORS
A partnership built on precision and expertise.
Pre-Engineered & Certified
Saves time in approvals and inspections with a fully certified system.
Design Assist Services
Early collaboration with architects and GCs to ensure code-compliant, cost-effective solutions.
CeraShield™ Finishing
Enhanced durability that outperforms standard powder coating in UV and corrosion tests.
Case Studies
Trusted by leading architects and contractors on landmark projects.
Category:
Universities
Location: Atlanta,
GA
Category:
Universities

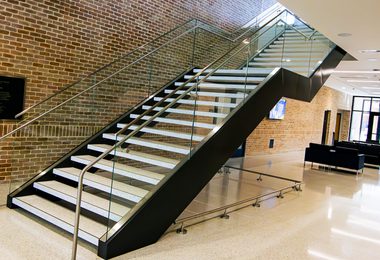

Location: Dallas,
TX
Category:
Ped Bridges
Location: Hickory,
NC
Category:
Multi-Family
Location: Houston,
TX
START YOUR PROJECT
Empower your design with engineered performance and elegance.
From luxury hospitality to academic campuses, SHOE™ empowers design freedom while reducing risk for contractors and owners. Let's discuss how we can help with your next project.
