Cable railings create modern, sightline-friendly guards for balconies, staircases, decks, and elevated walkways. Their clean, minimal aesthetic makes them a popular specification across commercial and residential projects. But because the infill is nearly transparent, they carry specific code requirements that ensure they still provide the safety a guardrail is meant to deliver.
Cable railing spacing is the most critical of those requirements, and it's the specification most likely to get flagged during plan review if it's not handled correctly. This guide walks through the complete cable railing code requirements: infill spacing, post spacing, handrail dimensions, guard heights, extensions, and how VIVA's cable railing systems meet code in commercial and residential applications.
Which Codes Apply to Cable Railings?
Cable railings fall under the handrail and guard requirements of two model codes: the International Building Code (IBC) for commercial projects and the International Residential Code (IRC) for residential projects. Both are created by the International Code Council (ICC) and are used as the basis for most municipal and local building codes.
Commercial buildings must also meet the Americans with Disabilities Act (ADA) requirements for accessibility. Where "code" is referenced throughout this article, it applies to the IBC, IRC, and ADA standards, which share many of the same requirements. Where the codes differ, the specific difference is noted.
As with any code-driven specification, it's important to check the local code specific to the project's jurisdiction, since local amendments and state codes can modify or supersede the model codes.

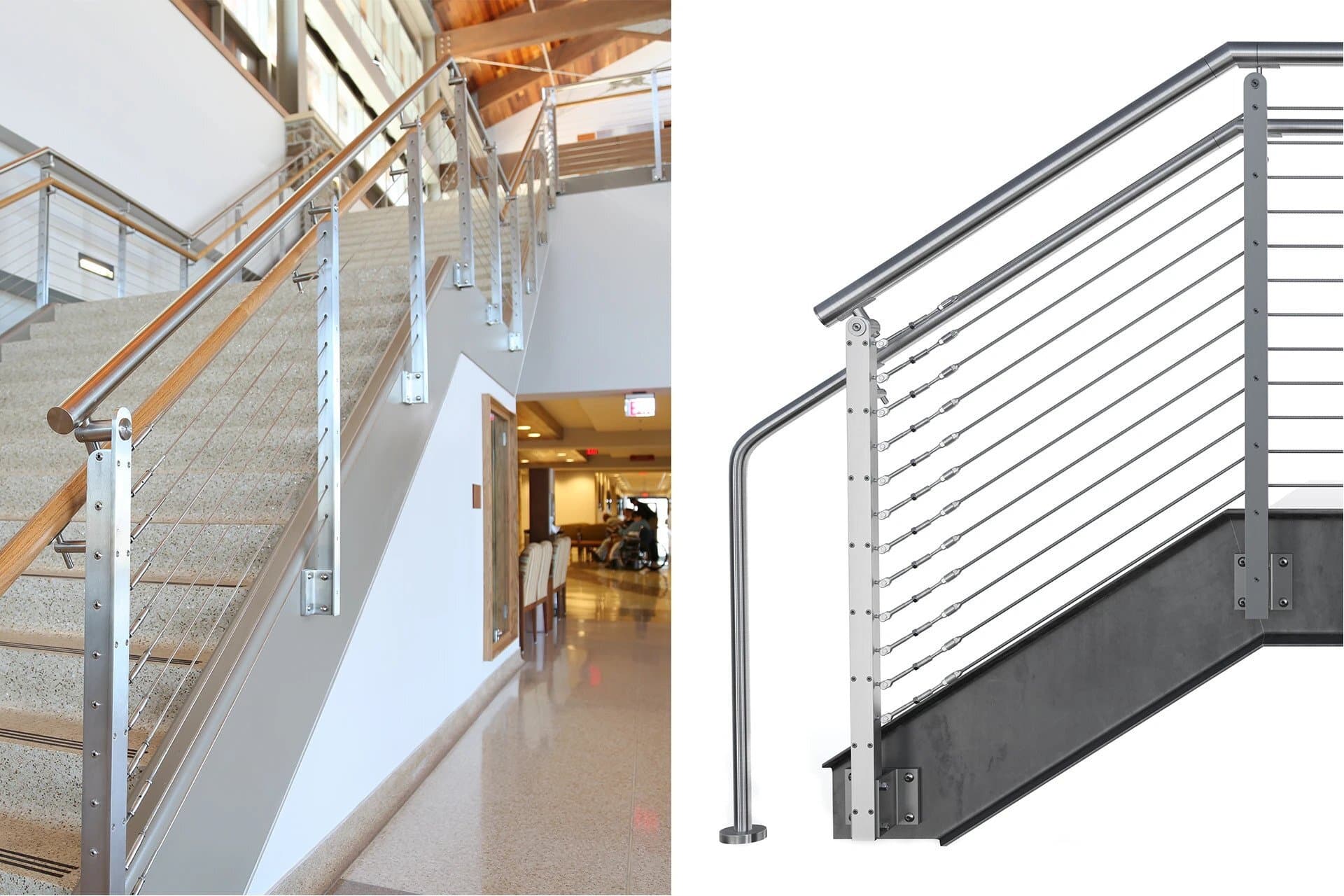

Cable Infill Spacing Requirements
Cable railing spacing refers to the space between individual cables (typically running horizontally) as well as the space between the top cable and the handrail, and between the bottom cable and the walking surface.
The core requirement: Under both the IBC and IRC, cable railing infill spacing cannot be so large as to allow a 4-inch sphere to pass through the cables. This is the standard opening limitation for guards across the model codes.
The stair exception: At the triangular opening where the railing meets the top stair tread, the code allows a slightly larger opening. That opening cannot allow the passage of a 6-inch sphere.
Commercial-specific exception: The IBC allows an opening large enough for a 4⅜-inch sphere to pass through railings that are between the heights of 36 inches and 42 inches. This applies to commercial applications only.
Accounting for cable deflection: Cable deflection refers to the stretching of the cable when under tension or applied force. Cables can deflect up to 25% when properly supported and under appropriate tension. To ensure the 4-inch sphere requirement is met even under deflection, cable railing spacing should typically be 3 inches to 3.25 inches on center. This provides margin against the 4-inch sphere passing through the cables even when reasonable force is applied.

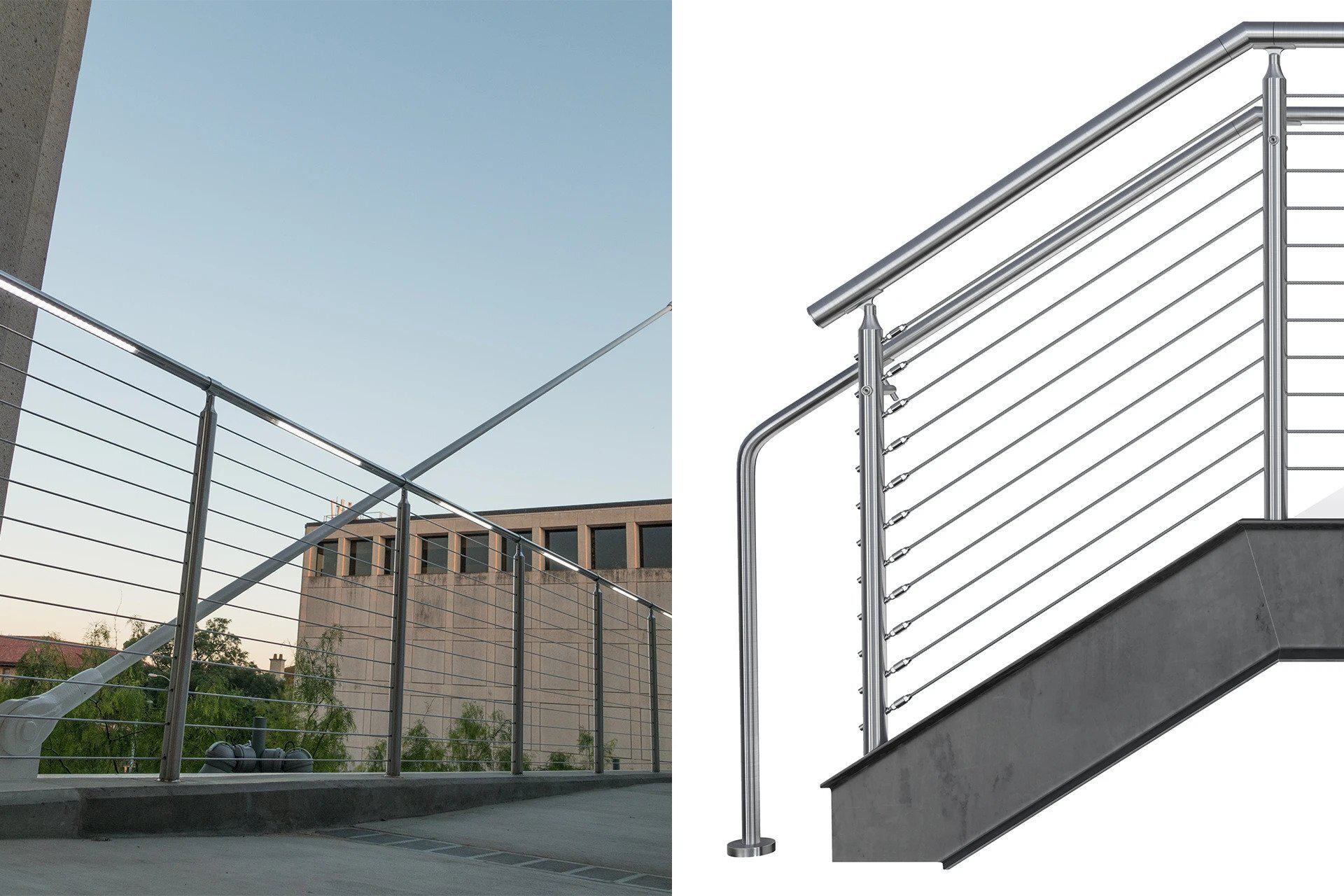

Cable Railing Post Spacing Requirements
The IBC and IRC do not specify a maximum post spacing for cable railings directly, but they do have load requirements that influence post spacing.
Load requirements per IBC and IRC:
- Handrails and guards must handle a linear load of 50 pounds per linear foot
- Handrails and guards must handle a concentrated load of 200 pounds
- Infill components must resist a concentrated load of 50 pounds
To meet these criteria, industry-standard post spacing for cable railings is typically between 4 feet and 8 feet on center. In some configurations, structural posts are spaced further apart with intermediate posts placed between them to maintain proper cable tension and meet load requirements without stretching the cable infill beyond its deflection limits.
For deck applications specifically, 4 feet on center is the recommended post spacing to ensure stability. Where wider spacing is needed for design reasons, structural posts can be placed at 8 feet on center with non-load-bearing posts spaced every 4 feet between the structural posts.

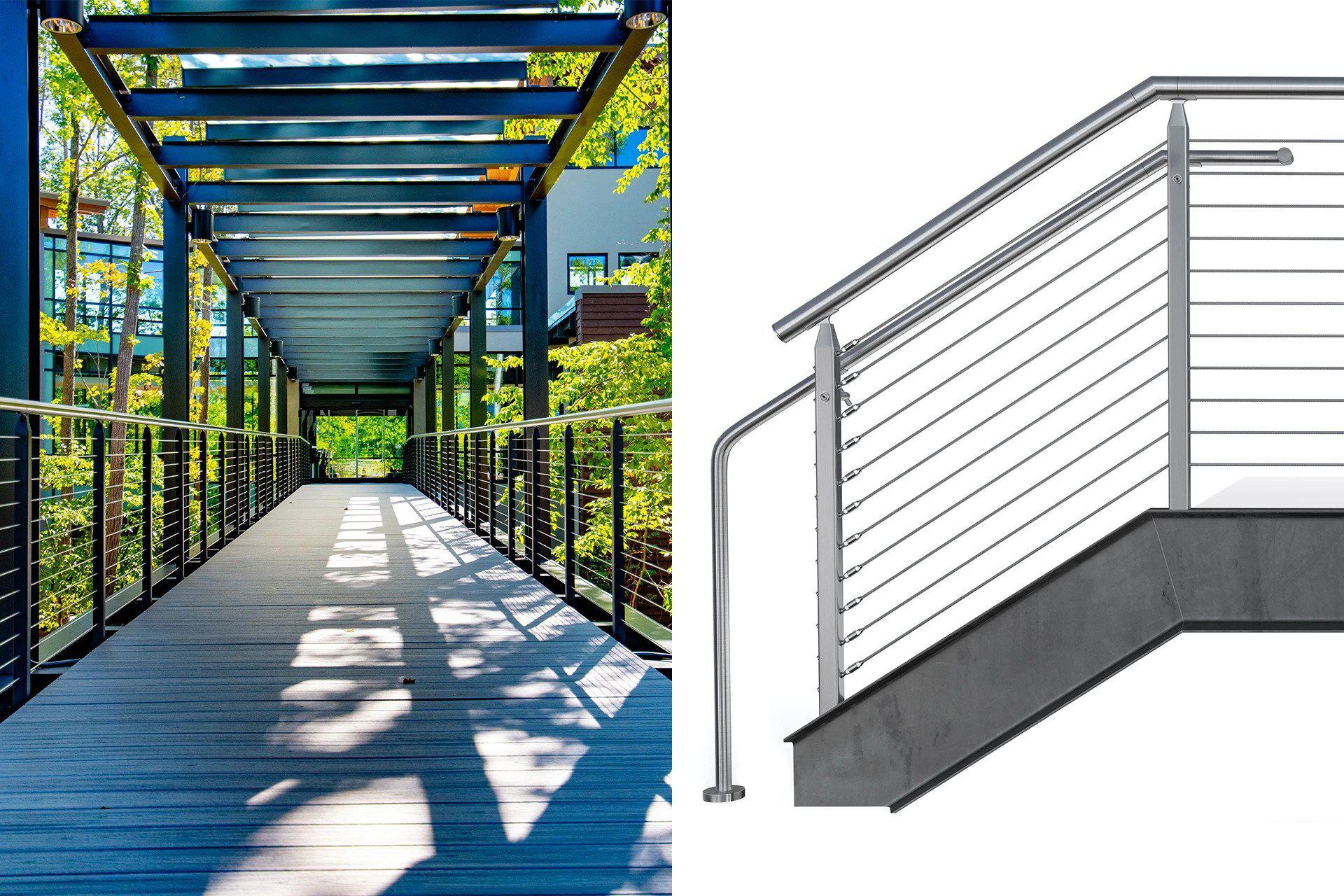

Cable Railing Handrail Requirements
When a cable railing includes a top handrail (which most commercial applications do), the handrail itself must meet specific dimensional requirements.
Handrail height: Handrails must be located between 34 inches and 38 inches measured from the stair tread nosing or walking surface to the top of the handrail. The height must be consistent along the entire length of the run.
Handrail projection: The handrail cannot project more than 4½ inches on either side of the stairway.
Handrail clearance: There must be at least 1½ inches of clearance between the handrail and any adjacent surface, typically a wall.
Handrail cross section: Circular handrails must have an outside diameter between 1¼ inches and 2 inches to allow maximum graspability. Non-circular handrails have their own dimensional requirements per Section 505 of the ADA Accessibility Standards.
Continuity: Handrails must be continuous for the full length of a flight of stairs or ramp run.
Number of handrails: The IRC requires at least one handrail on a flight of stairs or a ramp. The IBC and ADA standards require a handrail on each side of stairs or ramps.

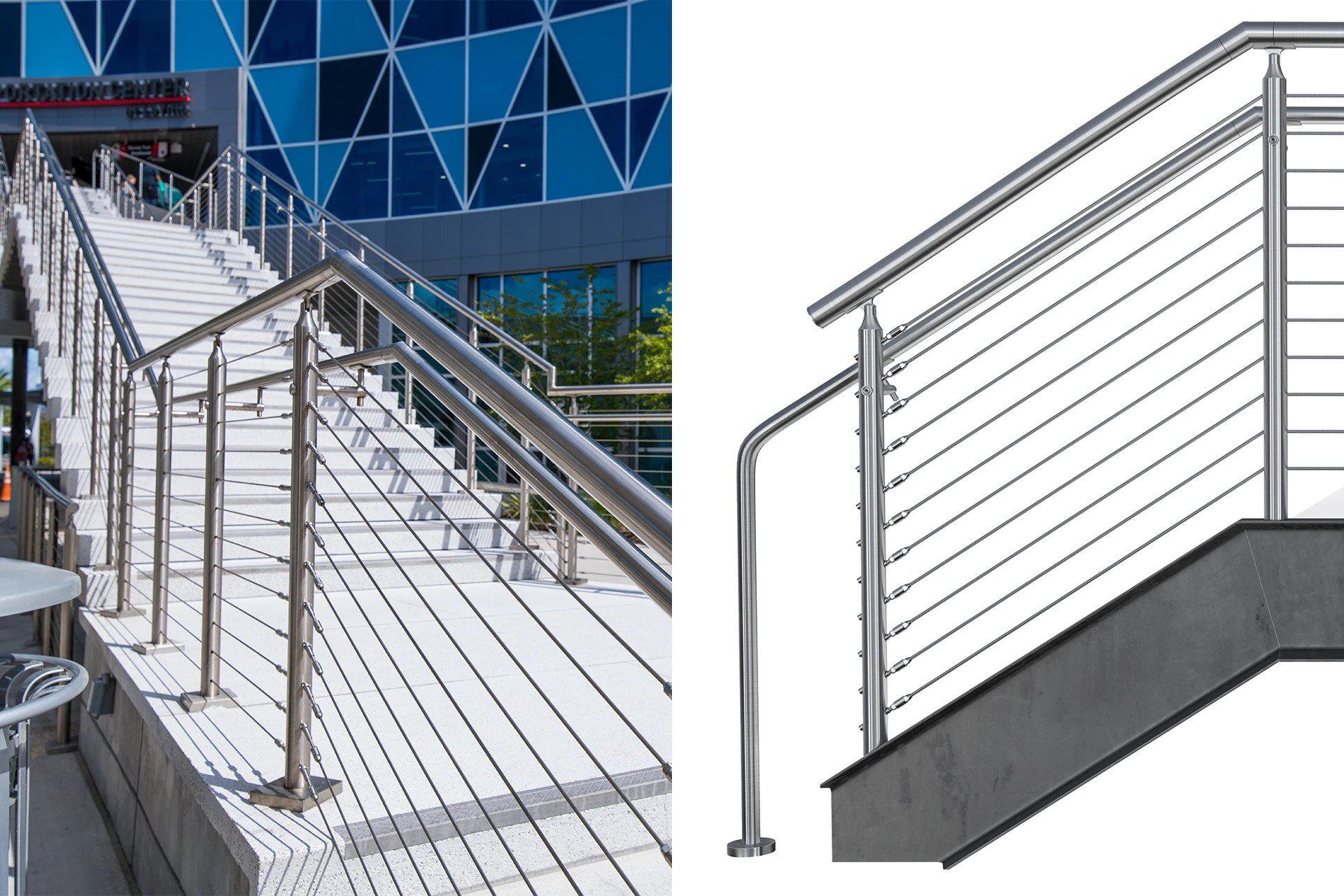

Cable Railing Guard Requirements
Guards are the fall-protection portion of a railing system and have their own set of code requirements distinct from handrails.
When guards are required: Guards are required where an open-sided walking surface is more than 30 inches measured vertically to the floor or grade below, at any point within 36 inches measured horizontally to the edge of the open side.
Guard height (residential): In residential applications under the IRC, guards must be at least 36 inches above the adjacent walking surface, measured from the stair tread nosings.
Guard height (commercial): Under the IBC, commercial guards must be no less than 42 inches from the adjacent walking surfaces.
Guard opening limitations: The 4-inch sphere rule applies to guards as it does to cable infill. The 6-inch sphere exception at the stair triangle opening also applies to guards. And the IBC's 4⅜-inch sphere exception for openings between 36 and 42 inches applies to commercial guards.

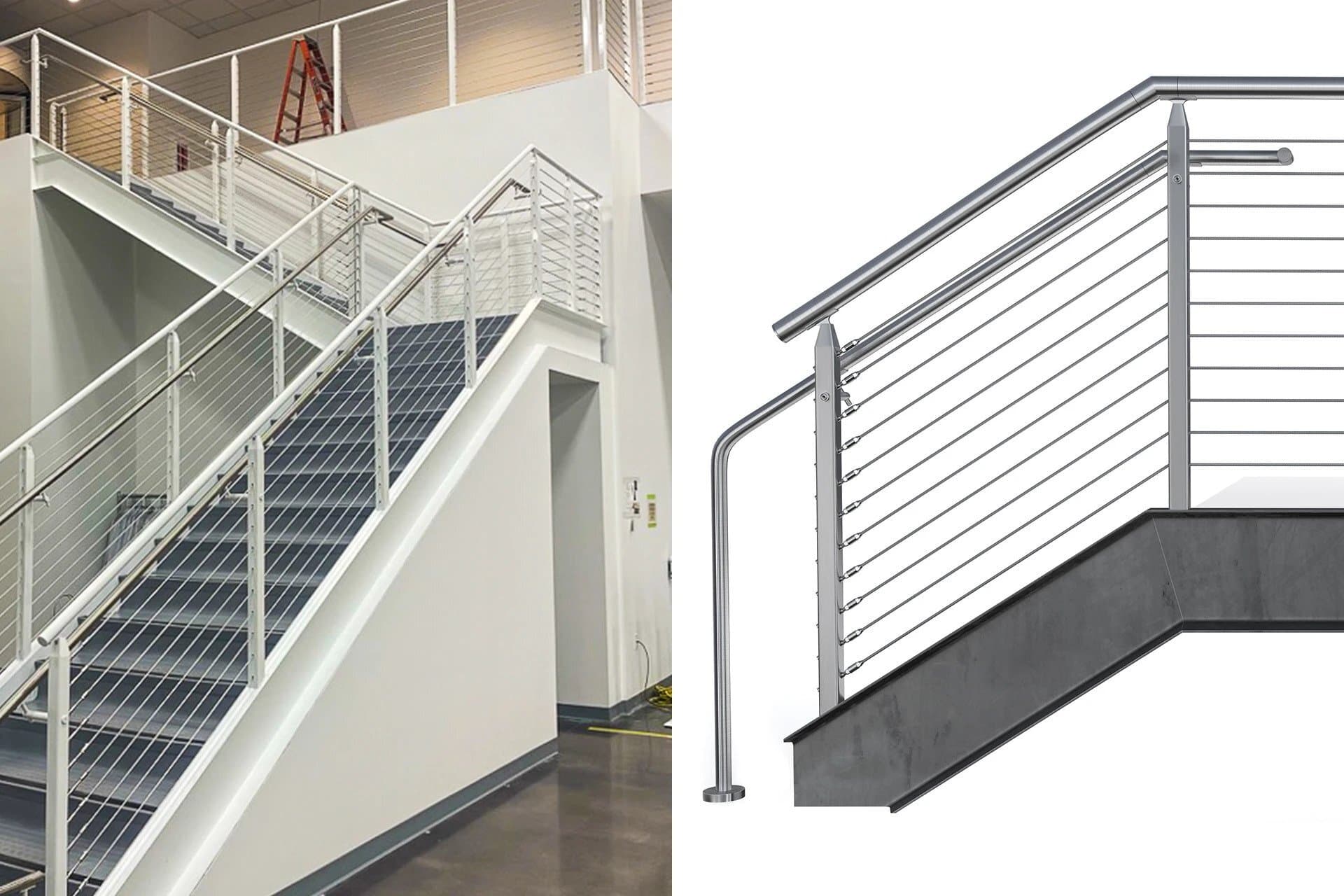

Cable Railing Extensions
Cable railing extensions are required in commercial construction and in any building that falls under ADA standards for accessibility.
Extension requirements: Extensions must extend for at least 12 inches horizontally from the top landing of a ramp or above the first riser nosing of a flight of stairs.
Bottom of stair extensions: At the bottom of a stair flight, the handrail must extend in the same direction as the flight of stairs for a distance equal to one tread depth beyond the last riser nosing.
Extension terminations: At both the top and bottom of stairs or ramps, the handrail must return to itself, the wall or adjacent surface, or the landing surface. Handrails may also be continuous to the handrail of another set of stairs or ramp.
Residential exception: The IRC does not require handrail extensions in residential applications. Residential handrails may begin at a point directly above the top riser and end at a point directly above the lowest riser. Handrails should return toward a wall, guard, walking surface, or terminate at a post. Residential handrails can be interrupted by a newel post where there is a turn in the staircase at a landing or over the lowest tread.
VIVA Cable Railing Systems That Meet Code
VIVA offers three cable railing systems designed to meet code requirements while delivering the aesthetic and performance the project calls for.

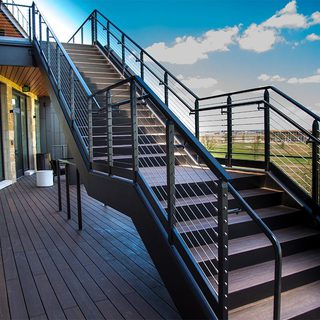

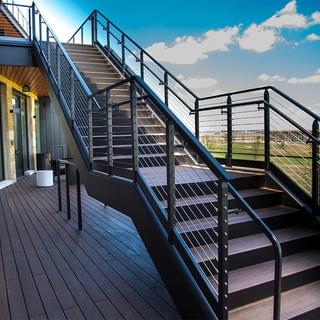

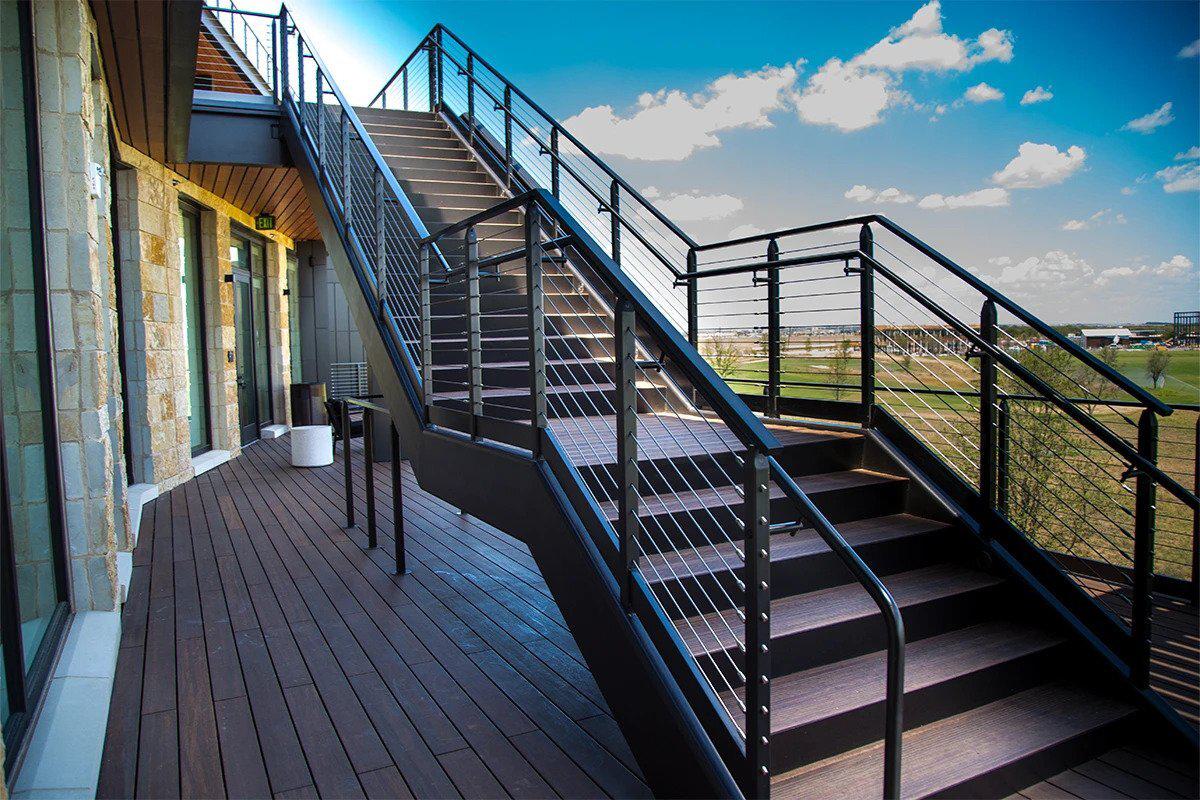

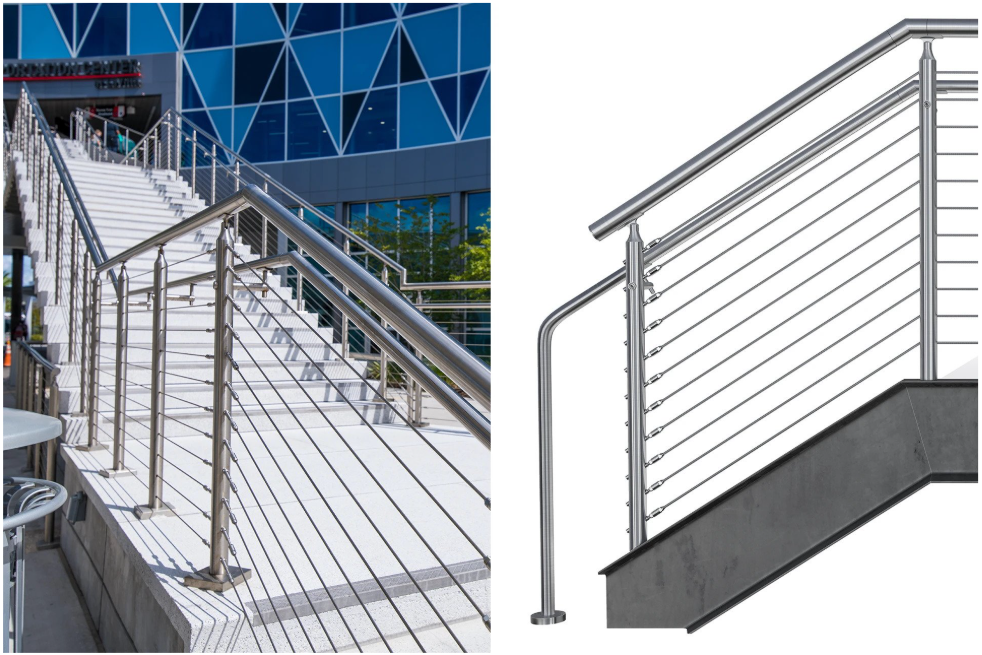

CIRCA Cable Railing System
The CIRCA Cable Railing System captures a simple, timeless look while meeting cable railing code spacing requirements. Maximum cable spacing is 3.25 inches, which ensures the 4-inch sphere requirement is met even accounting for cable deflection. Post spacing is set at a maximum of 4 feet, and four top rail options are available to fit different design contexts. Where handrails are required, they are installed at the proper height and meet all building code handrail requirements including ADA compliance.
CUBE Cable Metal Railing System
The CUBE Cable Metal Railing System features 2-inch by 2-inch square posts topped with monolithic pyramid top caps to create continuous, clean lines. This system is popular for exterior applications including balconies, decks, and elevated walkways. Cable spacing stays within 3.25 inches to meet code requirements, and posts do not exceed 4 feet on center. Powder-coated finishes are available across a wide range of colors, allowing specifiers to meet stainless steel cable railing spacing requirements while deviating from the standard stainless steel look.
TEE Cable Metal Railing System
The TEE Cable Metal Railing System features a minimal design with a structural T-section that enhances post stability against cable tension while concealing the cable mounting hardware. The system can be top mounted or fascia mounted depending on the needs of the space. TEE is often specified in deck and balcony applications where clear sightlines are critical. Cable spacing at 3.25 inches and post spacing at 4 feet keep the system within code requirements while handling specified loads.
Getting the Spec Right the First Time
Cable railing spacing code isn't complicated, but it does have real technical depth. The 4-inch sphere rule sounds simple until you factor in cable deflection. Post spacing sounds flexible until you factor in load requirements. Handrail dimensions sound straightforward until you factor in the difference between IBC and IRC applications, or the difference between residential and commercial ADA compliance.
VIVA's cable railing systems are engineered up front to meet code across these variables. The CIRCA, CUBE, and TEE systems all deliver the aesthetic and structural performance that projects call for while staying within the tolerances that code demands. Whether the application is a residential deck, a commercial balcony, an educational stair, or a hospitality terrace, the right cable railing specification is defined by code as much as design intent.
The Design Assist Services page covers what early-stage manufacturer engagement looks like on cable railing projects, especially where spacing, tension, and load coordination matter for the finished result.
Request a Quote or Talk to our Sales Team to work through your project.
Frequently Asked Questions About Cable Railing Spacing
What is the maximum cable spacing allowed by code?
Cable spacing must not allow a 4-inch sphere to pass through under IBC and IRC guard requirements. To account for cable deflection under applied force (up to 25%), industry practice is to space cables at 3 inches to 3.25 inches on center. This provides margin against the 4-inch sphere rule even when reasonable force is applied to the cables.
What is the maximum post spacing for cable railings?
The IBC and IRC do not specify a maximum post spacing directly, but load requirements typically constrain post spacing to between 4 feet and 8 feet on center. For deck applications, 4 feet on center is the recommended standard. Where wider structural post spacing is used, non-load-bearing intermediate posts are typically placed every 4 feet to maintain proper cable tension.
How do I account for cable deflection in spacing calculations?
Cables can deflect up to 25% under tension and applied force. To ensure that the 4-inch sphere rule is met even when the cable is deflected, specify cable spacing at 3 inches to 3.25 inches rather than closer to the 4-inch limit. Using a deck railing calculator or stair calculator can help verify spacing against code before installation.
What is the required handrail height for cable railings?
Handrails must be between 34 inches and 38 inches measured from the walking surface or stair tread nosing to the top of the gripping surface. The height must be consistent along the entire length of the run. Where children are the primary users, a second lower handrail with a maximum height of 28 inches should be installed.
What guard height is required for cable railings?
Guard height depends on jurisdiction and use. Under the IRC (residential), guards must be at least 36 inches above the adjacent walking surface. Under the IBC (commercial), guards must be at least 42 inches. The 4-inch sphere rule for openings applies to both, with a specific commercial exception allowing a 4⅜-inch sphere between 36 and 42 inches of height.
Do cable railings need to meet ADA requirements?
In commercial applications, yes. ADA path-of-travel requirements apply to handrails on cable railing systems used in accessible routes. This includes handrail height (34 to 38 inches), cross section (1¼ to 2 inches for circular handrails), continuity, clearance, and extensions at the top and bottom of runs. VIVA's cable railing systems are designed to meet ADA requirements when specified with the appropriate handrail configuration.
