VORTEX Post Supported Glass Railing System
Engineered transparency for modern architecture. A certified, pre-engineered solution designed for structural integrity and versatile design adaptability.
EXECUTIVE SUMMARY
The VORTEX Glass Railing System by VIVA Railings is a sleek, modern railing solution distinguished by its signature funnel-shaped conical bracket. Designed for transparency and strength, VORTEX offers architects a minimalist option that balances durability and aesthetic appeal.
Code Compliant
Meets stringent safety standards including IBC, CBC, and FBC HVHZ for windborne debris resistance.
Modular Design
Pre-engineered components and CNC fabrication reduce on-site adjustments and ensure installation efficiency.
Design Freedom
Extensive finish options, glass types, and mounting conditions to match any architectural vision.
TECHNICAL DETAILS
Engineered for performance and durability.
Conical Brackets
The hallmark of the VORTEX™ system is its vortex-shaped conical bracket, positioned between laminated glass panels.
Glass Infill
Minimum 3/8” laminated with PVB or SGP interlayer; standard options include 3/8” and 1/2”.
Top Rail Options
Stainless steel tube, U-cap, or wood (maple, cherry, oak), with optional integrated iRAIL™ LED lighting.
Finish Options
Standard anodized and satin finishes, plus premium CeraShield™ Ceramic Coating for extreme environments.
Load Performance
Engineered to withstand uniform loads of 50 lbf/ft and concentrated loads of 200 lbf.
Certifications
ICC-ES ESR-4405, ETL Certified (illuminated options), and compliant with ASTM C1172 & C1048.
VIVA DIFFERENTIATORS
A partnership built on precision and expertise.
Pre-Engineered & Certified
Saves time in approvals and inspections with a fully certified system.
Design Assist Services
Early collaboration with architects and GCs to ensure code-compliant, cost-effective solutions.
CeraShield™ Finishing
Enhanced durability that outperforms standard powder coating in UV and corrosion tests.
Case Studies
Trusted by leading architects and contractors on landmark projects.
Category:

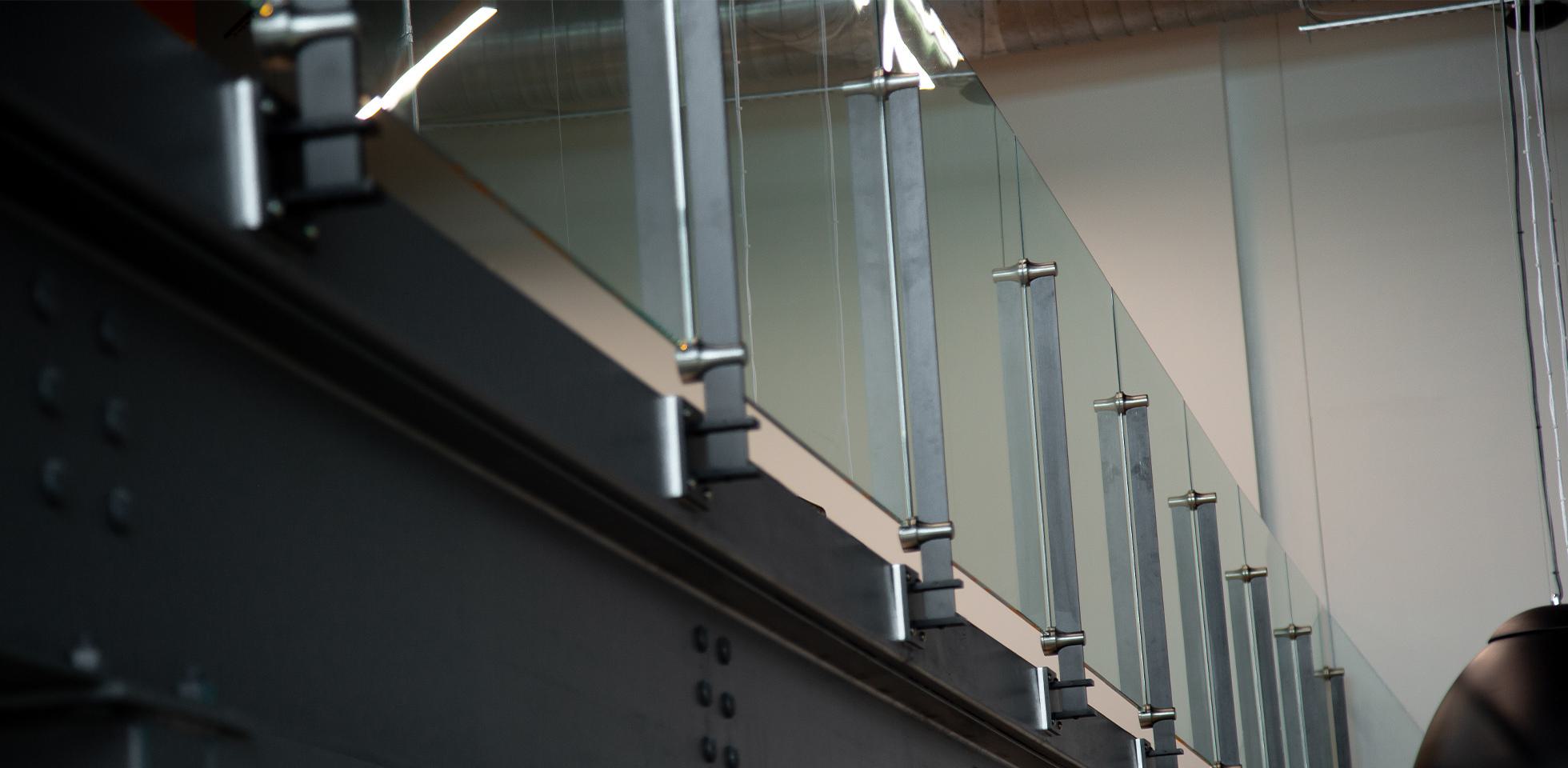

Headquarters
Location: Lewisville,
TX
Category:
Ped Bridges
Location: Oklahoma City,
OK
Category:
Multi-Family
Location: Houston,
TX
START YOUR PROJECT
Empower your design with engineered performance and elegance.
The defining feature of VORTEX is its conical bracket, which creates both structural support and visual distinction. By combining glass transparency with minimal hardware visibility, the system achieves a striking, contemporary look.
