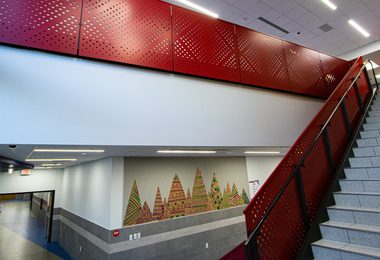

STRUC Metal Panel Railing System
Engineered transparency for modern architecture. A certified, pre-engineered solution designed for structural integrity and versatile design adaptability.
EXECUTIVE SUMMARY
The STRUC Metal Panel Railing System by VIVA Railings is a structural sheet metal solution that combines engineering precision with design versatility. Featuring CNC laser-cut patterns, STRUC offers both pre-configured and fully custom infill options.
Code Compliant
Meets stringent safety standards including IBC, CBC, and FBC HVHZ for windborne debris resistance.
Modular Design
Pre-engineered components and CNC fabrication reduce on-site adjustments and ensure installation efficiency.
Design Freedom
Extensive finish options, glass types, and mounting conditions to match any architectural vision.
TECHNICAL DETAILS
Engineered for performance and durability.
Metal Panels
Stainless steel or aluminum posts supporting CNC laser-cut sheet metal panels.
Aluminum or Steel
CNC laser-cut sheet metal panels (aluminum or steel), custom patterns available.
Top Rail Options
Stainless steel tube, U-cap, or wood (maple, cherry, oak), with optional integrated iRAIL™ LED lighting.
Finish Options
Standard anodized and satin finishes, plus premium CeraShield™ Ceramic Coating for extreme environments.
Load Performance
Engineered to withstand uniform loads of 50 lbf/ft and concentrated loads of 200 lbf.
Certifications
ICC-ES ESR-4405, ETL Certified (illuminated options), and compliant with ASTM C1172 & C1048.
VIVA DIFFERENTIATORS
A partnership built on precision and expertise.
Pre-Engineered & Certified
Saves time in approvals and inspections with a fully certified system.
Design Assist Services
Early collaboration with architects and GCs to ensure code-compliant, cost-effective solutions.
CeraShield™ Finishing
Enhanced durability that outperforms standard powder coating in UV and corrosion tests.
Case Studies
Trusted by leading architects and contractors on landmark projects.
Category:
Universities
Location: Ft. Worth,
TX
Category:
Universities
Location: Lubbock,
TX
Category:
Universities
Location: Atlanta,
GA
START YOUR PROJECT
Empower your design with engineered performance and elegance.
VIVA Railings’ STRUC Metal Panel Railing System blends structural engineering with architectural artistry.
