Struc Panel Railing System

West Coast University

Products Used:

Project Overview

Category: Universities
Location: Richardson, TX
General Contractor: HRNCIR Construction
Architect: Gensler

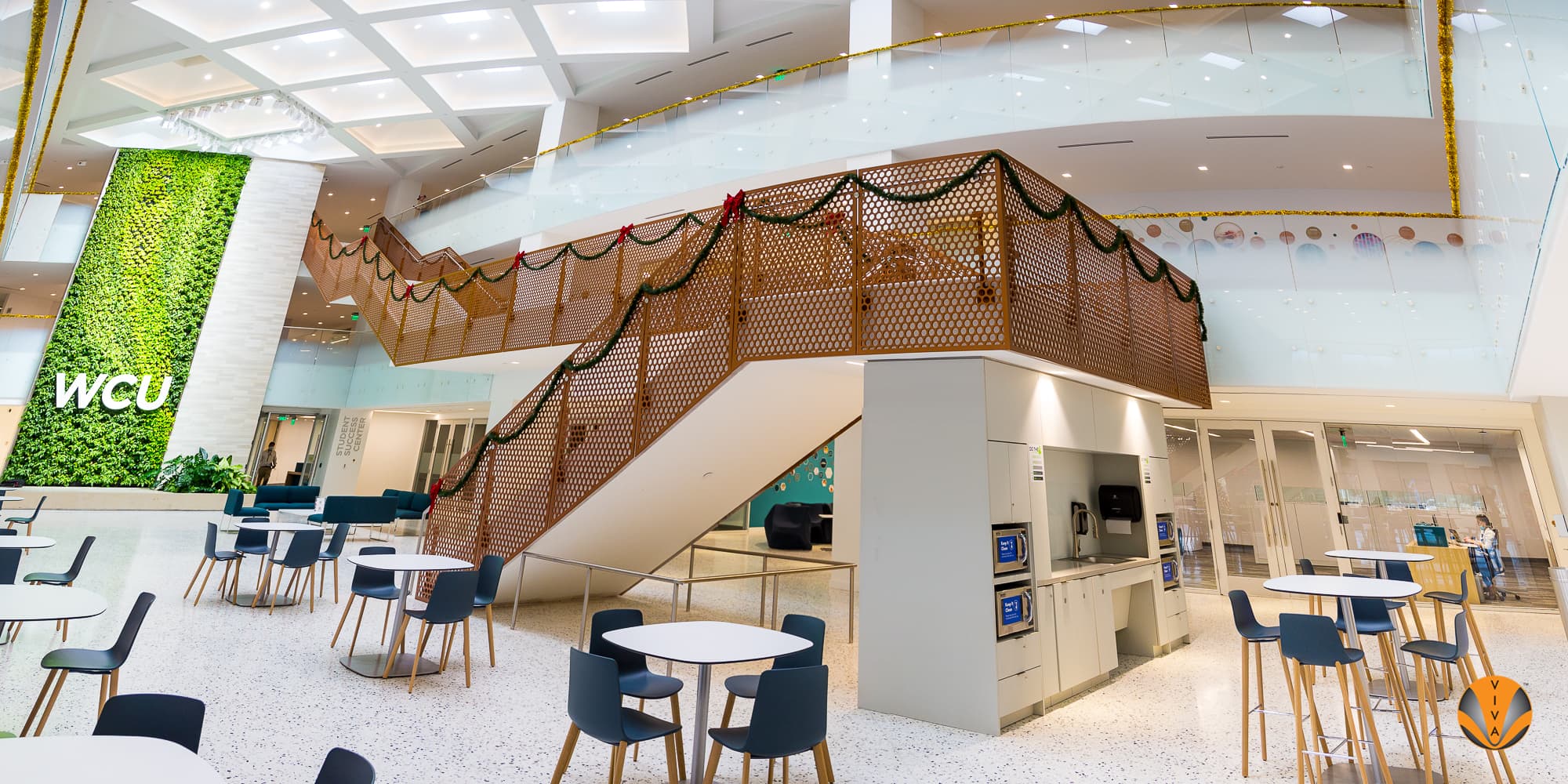

Our Struc Panel Railing System is an ingeniously engineered structural sheet metal fabrication design. This system features CNC laser cut patterns that provide a range of pre-configured or custom designs of your choice. With material choices of aluminum in finishes of powder coating & anodized and stainless steel in #6 satin and ECM colors – what you can do with the fold panel system on your project is best left to your imagination. This system is available in a range of pre-configured patterns or custom designs of your choice and allows you to customize company logos and images.

VIVA’s tempered glass infills provide optimal line of sight as well as an understated elegance. Our glass infills range from a minimum of 3/8″ PVB or SGP laminated glass. Colored, patterned and frosted glass are additional options based on design intent and need.

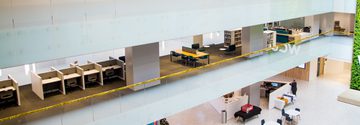

Our VIEW™ is a Button Structural Glass Balustrade Railing System that provides the clearest view imaginable. This system consists of 1/2” (minimum) SGP laminated glass or 5/8″ PVB laminated glass and fascia mounted with fixed point holders in stainless steel.


Our iRAIL™ System is a LED illuminated version of our 1.5” diameter rails. iRAIL uses an ADA compliant roll-formed (monolithic) slotted rail, that houses a high-performance LED assembly. VIVA iRAIL™ uses a specially designed LED that can provide full-length coverage of illumination for whatever your rail run may be, compared to the traditional LED railing assemblies that were only available in preset section lengths. Lighting is available in warm or bright white with either a clear or diffused lens.

PROJECT TEAM

HRNCIR Construction was founded in 2013 and takes pride in delivering the highest level of quality, integrity and variety of needs for every client, regardless of size or scope.

Sustainability, Continuity & Community are the foundations that have made Gensler such a successful company. With over 3,000 clients across the U.S. and designing 9 of the top 10 banks in the United States, Gensler has become one of the top design firms in the country.

ABOUT WEST COAST UNIVERSITY – RICHARDSON, TX

The new West Coast University Texas Campus features over 136,000 feet of learning space, simulation labs, and study rooms
